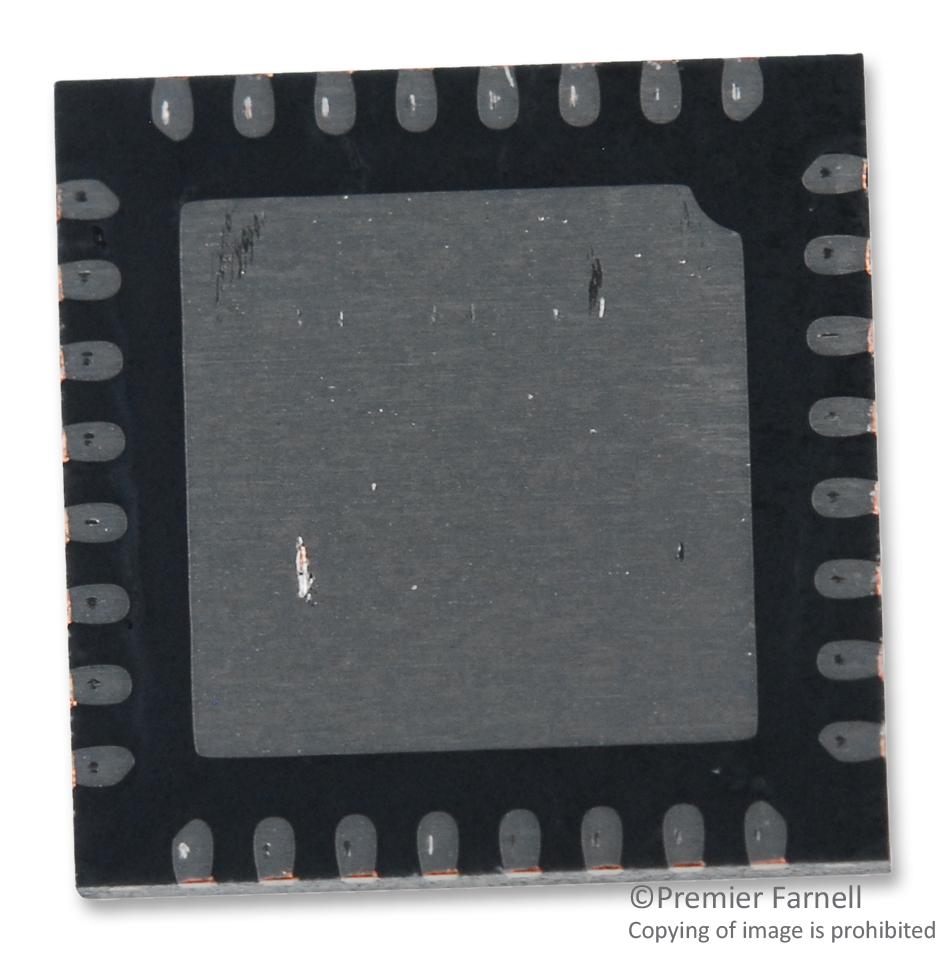

MAXIM INTEGRATED / ANALOG DEVICES MAX9714ETJ Stereo Class D Amplifier
The MAX9714ETJ+ is a 6W spread spectrum stereo Class D amplifier in a compact 32-pin TQFN package, offering high efficiency and Class AB performance. Its filterless design with proprietary modulation schemes eliminates the need for output filters, simplifying system design. It supports fixed frequency and spread spectrum modes to reduce EMI, providing versatile operation for applications like LCD monitors, LCD TVs, desktops, and portable devices. Features include a voltage range of 10V to 25V, low THD+N of 0.07%, high PSRR of 76dB, differential inputs, and built-in protections, making it ideal for space-constrained, high-performance audio systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX9714ETJ Stereo Class D Amplifier Specifications:
- Output Power: 6W at 8Ω, 8W at 16Ω
- Supply Voltage Range: 10V to 25V
- Total Harmonic Distortion plus Noise: 0.07%
- Power Supply Rejection Ratio: 76dB at 1kHz
- Operating Temperature Range: -40°C to 85°C
- Input Impedance: Differential inputs, Pin-Selectable Gain
- Low Quiescent Current: 10mA
- Shutdown Current: 0.2μA
- Package Type: 32-pin TQFN (7mm x 7mm x 0.8mm)
- Features: Spread-spectrum modulation, click-and-pop suppression, short-circuit and thermal overload protection
- Mode Support: Fixed-frequency and spread spectrum (SSM)
- Applications: LCD monitors, LCD TVs, desktop PCs, high-end notebooks, portable audio, car hands-free systems
Buy the Maxim MAX9714 – Reliable Stereo Class D Amplifier for Industrial Applications
Experience superior audio performance with the Maxim MAX9714 stereo Class D amplifier. Designed for space efficiency and high efficiency, this 6W device offers low distortion, spread spectrum EMI reduction, and built-in protections. Ideal for LCD monitors, TVs, portable gadgets, and high-end audio systems, it features a wide voltage range of 10V to 25V, differential inputs, pin-selectable gains, and click/pop suppression. Purchase online today to enhance your audio project with a reliable, high-performance amplifier designed for demanding applications.
Get Maxim MAX9714 today—built for precision, space-saving design, and long-lasting durability in high-performance audio systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX9714ETJ?
You can click on the BUY or RFQ button to purchase MAX9714ETJ from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX9714ETJ?
You can download the MAX9714ETJ datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX9714ETJ?
MAXIM INTEGRATED / ANALOG DEVICES
