MAXIM INTEGRATED / ANALOG DEVICES MX7541AJN 12-bit multiplying DAC
The MX7541AJN+ is a CMOS 12-bit multiplying Digital-to-Analog Converter housed in an 18-pin DIP package. It offers low power consumption and boasts 0.012% linearity, suitable for high-precision data acquisition, control applications, programmable gain amplifiers, digitally controlled filters, and programmable power supplies. Built with wafer-level laser-trimmed resistors and temperature-compensated NMOS switches, it guarantees true 12-bit performance across 0°C to 70°C. Digital inputs support TTL and CMOS levels, with a supply voltage from 5V to 16V, supporting four-quadrant multiplication. Applications include automation, calibration, and test equipment.
MAXIM INTEGRATED / ANALOG DEVICES MX7541AJN 12-bit multiplying DAC Specifications:
- Resolution: 12 Bits
- Linearity: 0.012%
- Gain Accuracy: 1 LSB
- Power Supply Range: 5V to 16V
- Package: 18-pin DIP
- Temperature Range: 0°C to 70°C
- Output Voltage: Varies with reference and digital input
- Output Type: Multiplying DAC supporting four-quadrant operation
- Digital Inputs: TTL and CMOS compatible
- Switching: NMOS switches with wafer-level laser-trimmed resistors
- Linearity: Guaranteed true 12-bit performance
- Application: Data acquisition, control, programmable gain, filters, calibration, and test equipment

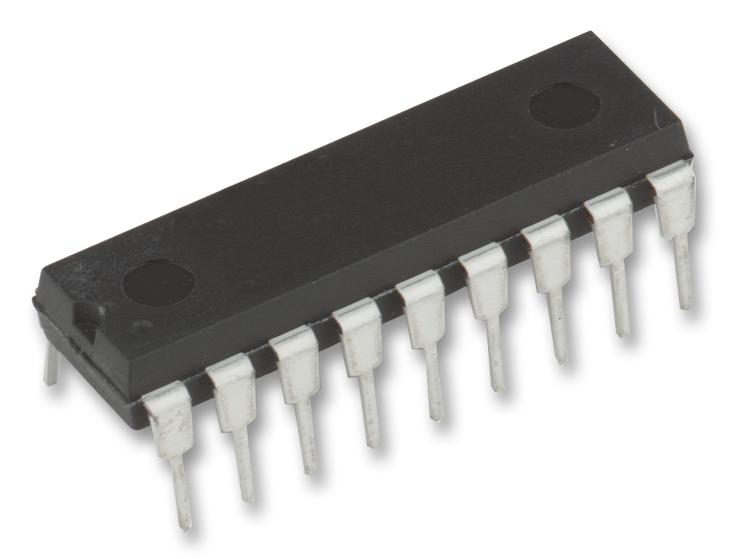

Buy the Buy Maxim MX7541AJN+ CMOS 12-Bit Multiplying DAC Part Number MX7541AJN Online
Purchase the Maxim MX7541AJN+ online today to enjoy fast delivery of a high-performance CMOS 12-bit multiplying DAC featuring low power operation, 0.012% linearity, wide temperature tolerance, and digital compatibility. Perfect for precision data acquisition, programmable gain amplifiers, filters, and calibration circuits. With wafer-level laser trimming and temperature compensation, it guarantees consistent 12-bit fidelity across diverse industrial applications. Benefit from secure online ordering, competitive pricing, and timely delivery to ensure your projects maintain high accuracy and efficiency with this advanced DAC module.
Order your Maxim SeriesMX7541AJN+ CMOS 12-bit multiplying DAC today and ensure your high-precision control and measurement projects succeed with reliable performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MX7541AJN?
You can click on the BUY or RFQ button to purchase MX7541AJN from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MX7541AJN?
You can download the MX7541AJN datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MX7541AJN?
MAXIM INTEGRATED / ANALOG DEVICES
