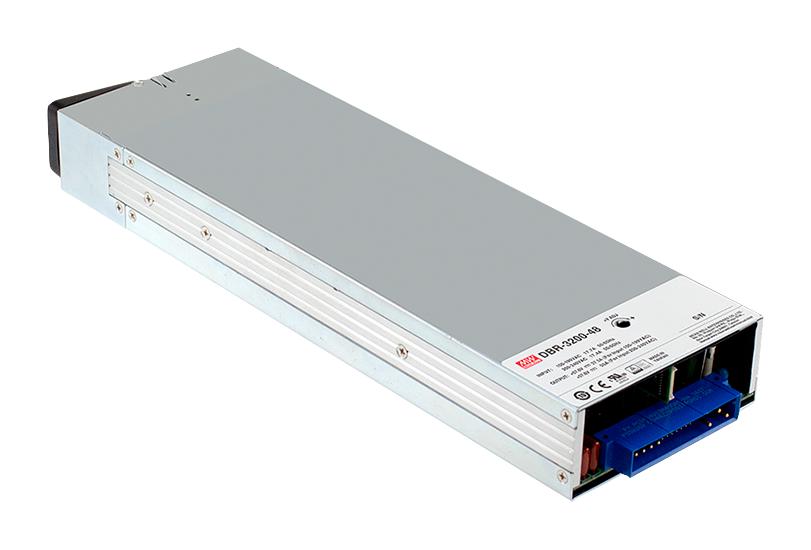

MEAN WELL DBR320048 High Power Battery Charger
The DBR-3200 is a high-power 3200W rack-mountable AC/DC front-end battery charger designed for diverse applications including UPS systems, marine battery chargers, vehicle charging stations, and wastewater treatment systems. It features programmable charging curves for lead-acid and lithium-ion batteries, adjustable output voltage and current, and safety protections such as over-voltage, over-temperature, and short circuit. Its intelligent design includes active PFC, thermal-controlled DC fans, hot swap support, and optional communication protocols (PMBus, CANBus). The compact 1U form factor ensures easy integration into rack-mounted systems, delivering reliable, safe, and efficient battery management. The device supports high efficiency, advanced protection, and temperature compensation functions, making it ideal for large-scale backup and industrial power applications.
MEAN WELL DBR320048 High Power Battery Charger Specifications:
- Power: 3200W
- Input Voltage Range: 90~264VAC / 127~370VDC
- Output Voltages: 28.8V (for 24V batteries), 57.6V (for 48V batteries)
- Output Currents: 110A (24V), 55A (48V)
- Efficiency: 98.5%
- Protection: Over-voltage, over-temperature, short circuit, battery under voltage, no connection detection
- Cooling: Thermal-controlled DC fans
- Enclosure: 1U rack-mountable (325mm x 107mm x 41mm)
- Protection Certifications: UL, IEC 62368-1, EN 55032, EN 55024
- Communication Protocols: PMBus (optional), CANBus (on request)
- Operational Temp: -40°C to +85°C storage, 0°C to +70°C operating
- Cooling: Active fan cooling
- Frequency Range: 47~63Hz
- Electrical Isolation: 3KV AC, 2KV DC
- Dimensions: 325mm x 107mm x 41mm
- Weight: Approximately 2.65 kg (4 units per box)
Buy the Mean Well Series 3200W Battery Charger: DBR3200-48
Purchase the Mean Well DBR3200 series battery charger online today to ensure efficient, safe, and reliable charging for large-scale backup, marine, or industrial applications. This high-density, rack-mountable device offers programmable output voltage and current, advanced protections, communication interfaces, and compliance with international safety standards. Its intelligent features make it ideal for demanding environments requiring consistent power management. Order now to benefit from fast delivery and expert support, securing a dependable solution for your emergency power or industrial charging needs.
Buy Mean Well DBR3200-48 now and experience unmatched reliability and high power density for your battery management needs.
Frequently Asked Questions
Where can I buy MEAN WELL DBR320048?
You can click on the BUY or RFQ button to purchase DBR320048 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DBR320048?
You can download the DBR320048 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DBR320048?
MEAN WELL
