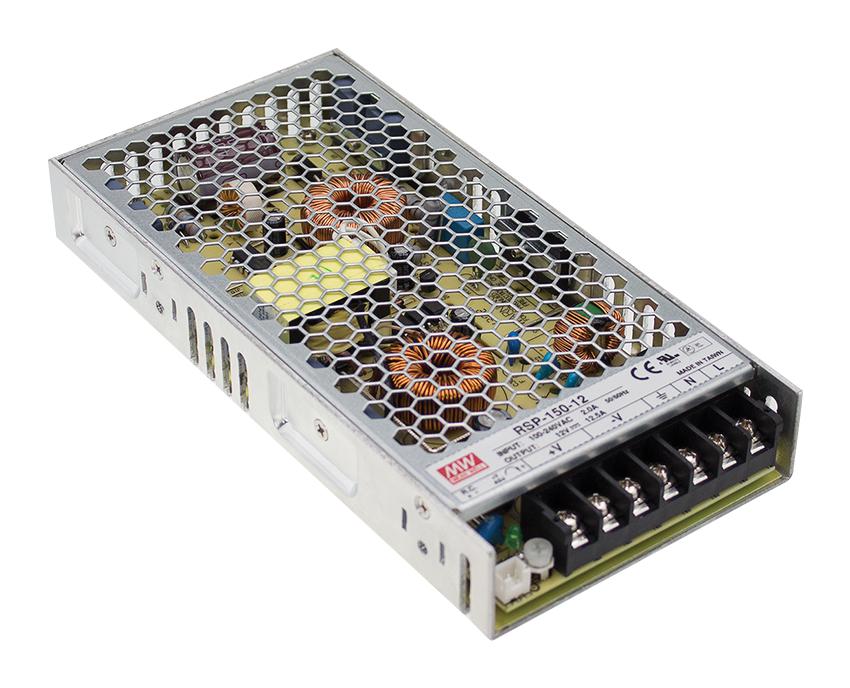

MEAN WELL RSP150135 Industrial Power Supply
The RSP-150 series is a reliable 150W single-output power supply with PFC function, suitable for industrial applications. It features universal AC input and full range voltage compatibility, with protections against short circuits, overload, overvoltage, and temperature. The power supply offers high efficiency up to 90%, a low profile of 30mm, and remote ON-OFF control, making it easy to integrate into compact equipment. Its built-in active PFC improves power factor, ensuring compliance with EMC standards and supporting stable operation across a wide input voltage range. Suitable for automation, control systems, and manufacturing equipment requiring durable, efficient power conversion.
MEAN WELL RSP150135 Industrial Power Supply Specifications:
- Power Output: 150W
- Input Voltage Range: 85-264VAC / 120-370VDC
- Input Frequency: 47-63Hz
- Efficiency: Up to 90%
- Protections: Short circuit, overload, overvoltage, over temperature
- Cooling: Free air convection
- Dimensions: 199 x 99 x 30 mm (L x W x H)
- Remote ON-OFF Control: Yes, <0-0.8VDC for ON
- Power Factor: >0.99 at 230VAC, >0.98 at 115VAC
- Ripple & Noise: Max 150mVp-p for most models, 250mVp-p for higher models
- Operating Temperature: -30°C to +70°C (derating included)
- Humidity: 20-90% RH, non-condensing
- Certifications: UL, TUV, EN standards, CCC approved
- Built-in active PFC, automatic recovery from fault conditions
- LED indicator for power status
- MTBF: 290,700 hours
Buy the Mean Well Series RSP-150 150W Power Supply: RSP-150-135
Experience reliable power conversion with the Mean Well RSP-150-135 industrial power supply, featuring active PFC, universal input, protections, and high efficiency. Its compact 30mm profile makes it ideal for mounting in tight spaces, while the remote ON-OFF control adds convenience for automation systems. Certified by UL, TUV, and EN standards, this 150W device ensures operational safety and durability in demanding industrial environments. Invest in the RSP-150-135 today for dependable, efficient power that meets rigorous industry requirements and supports your automation needs.
Get Mean Well RSP-150-135 today—built for precision and long-lasting durability in industrial power applications.
