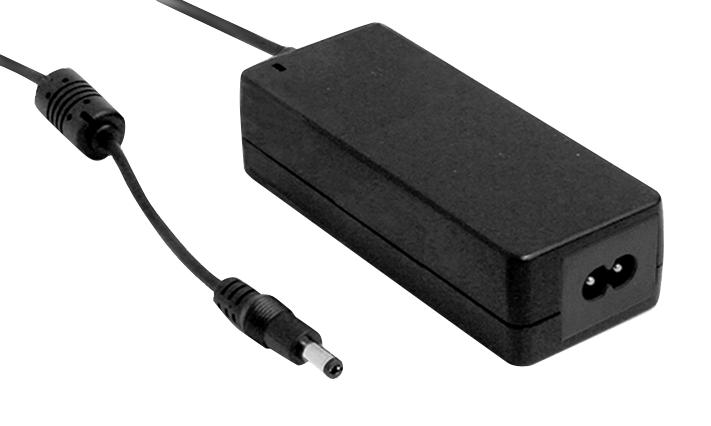

MEAN WELL GSM60B12P1J Medical Power Adapter
GSM60B12P1J is a high-reliability, medical-grade AC-DC power adaptor designed for hospital and clinical environments. It offers an input range of 80VAC to 264VAC, with a power output of 12V and a rated current of 5A, delivering 60W. Constructed with a 94V-0 flame-retardant plastic case and double insulation, it ensures safety compliance and prevents electrical shock. Key features include high efficiency up to 91.5%, ultra-low leakage current below 50µA, and full medical safety standards (2*MOPP). Its fanless design operates reliably from -30°C to +60°C, suitable for critical medical equipment such as monitors and infusion devices.
MEAN WELL GSM60B12P1J Medical Power Adapter Specifications:
- Input Voltage: 80~264VAC, 47~63Hz
- Output Voltage: 12V
- Rated Current: 5A
- Rated Power: 60W
- Ripple & Noise (max): 100mVp-p
- Voltage Tolerance: +5.0%
- Line Regulation: +1.0%
- Load Regulation: +5.0%
- Efficiency: Up to 91.5%
- Leakage Current: <50µA
- Operating Temperature: -30°C to +60°C
- Storage Temperature: -40°C to +85°C
- Isolation Level: 2xMOPP
- Dimensions: 102.1mm x 50mm x 31.5mm
- Safety Standards: IEC60601-1, TUV, UL
- Certifications: CE, CB, FCC, RoHS
Buy the Generic 60WAC-DC High Reliability Medical Adaptor GSM60B series – Reliable Medical Power Supply for Healthcare Devices
Order the GSM60B12P1J medical power adaptor online and ensure your healthcare devices operate with the highest safety standards and efficiency. This 60W adaptor features a wide input voltage range, low leakage current, and high efficiency up to 91.5%, making it ideal for critical medical equipment like monitors, infusion pumps, and portable dialysis machines. Its fanless, robust design guarantees reliable performance from -30°C to +60°C, meeting global medical safety certifications such as IEC60601-1. Invest in quality, safety, and durability by purchasing now for seamless healthcare device operation.
Get GSM60B12P1J today—built for precision, safety, and long-lasting reliability in medical applications.
