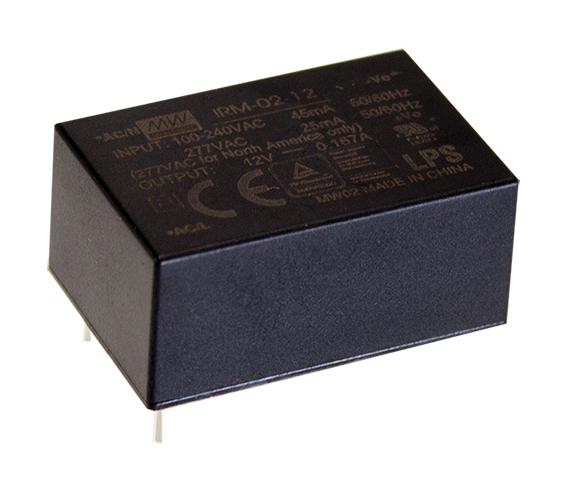

MEAN WELL IRM029 Miniature AC-DC Power Supply
IRM-02 is a compact 2W AC-DC power supply module designed for industrial electrical equipment and automation systems. Its phenolic case with fully potting silicone ensures excellent heat dissipation and resistance to dust, moisture, and vibration up to 5G. With a universal input range of 85~305VAC and high efficiency up to 77%, it minimizes power consumption below 0.075W at no load, meeting global low-power regulations. The Class II design includes built-in EMI filtering, ensuring compliance with EN55022 Class B and robust electromagnetic interference immunity. Suitable for PCB mounting and SMD applications, it guarantees reliable power in various industrial and electronic devices.
MEAN WELL IRM029 Miniature AC-DC Power Supply Specifications:
- Power Output: 2W
- Input Voltage Range: 85~305VAC
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V
- Rated Currents: 600mA (3.3V), 400mA (5V), 222mA (9V), 167mA (12V), 133mA (15V), 83mA (24V)
- Ripple & Noise: Max. 150mVp-p for most models, 200mVp-p for 15V/24V
- Voltage Tolerance: ±2.5% to ±42.5% depending on model
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Efficiency: Up to 77%
- No-load Power Consumption: <0.075W
- Operating Temperature: -30°C to +85°C
- Dimensions: 33.7mm x 22.2mm x 15mm (PCB mounting); 33.7mm x 22.2mm x 4.6mm (SMD style)
- Vibration Resistance: Up to 5G
- Safety Standards: UL60950-1, TUV EN60950-1, optional IEC60601-1
- Isolation Voltage: 3KVAC (output to input)
- EMC Compliance: EN55022 Class B, EN61000-4 series immunity, EN55024
- MTBF: 1960K hours per MIL-HDBK-217F
Buy the Mean Well 2W Series Reliable Power Supply for Industrial Applications
Order the reliable IRM-02 miniature AC-DC power supply online today to power your industrial automation and electronic projects. With high efficiency up to 77%, low no-load power consumption below 0.075W, and universal input voltage of 85~305VAC, this compact module ensures optimal performance and compliance with global standards. Its rugged phenolic and silicone-encased design offers resistance to dust, moisture, and vibration up to 5G, making it suitable for harsh environments. Ideal for PCB and SMD applications, this power supply guarantees long-term reliability and safety in your industrial systems. Buy now!
Buy Mean Well IRM-02 power supply now and ensure reliable performance in industrial automation, electronics, and medical equipment.
