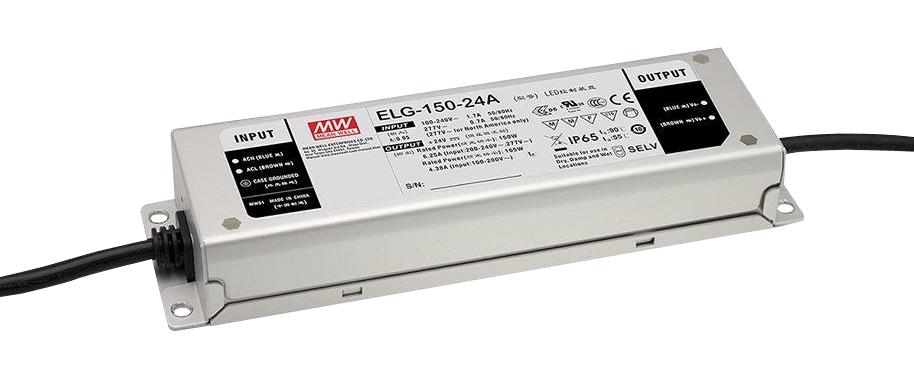

MEAN WELL ELG15042DA LED Driver
The ELG-150 series is a 150W AC/DC LED driver designed for versatile indoor and outdoor lighting applications. Features include dual-mode constant voltage and constant current output, high efficiency up to 91%, and an IP67/IP65 ingress protection rating. It supports various dimming methods such as 3-in-1, DALI, and smart timer dimming, with a lifetime exceeding 50,000 hours and a 5-year warranty. Its metal housing and wide operating temperature range from -40°C to +90°C ensure durability and reliability in diverse environments.
MEAN WELL ELG15042DA LED Driver Specifications:
- Power Rating: 84~150W
- Input Voltage Range: 100~305VAC
- Output Voltage Range: 12V to 54V with models available at 12V, 24V, 36V, 42V, 48V, 54V
- Efficiency: Up to 91%
- Ingress Protection: IP67/IP65
- Operating Temperature: -40°C to +90°C
- Lifetime: >50,000 hours
- Dimming Functions: 3-in-1, DALI, Smart timer
- Protection: Overvoltage, overcurrent, short circuit, and thermal shutdown
- Dimensions: 219mm x 63mm x 35.5mm
- Weight: 0.95kg
- Certifications: UL, CSA, EN62384, IEC/EN/AS/NZS 61347, EAC, KC
- Built-in active PFC, fanless design, corrosion-resistant metal housing
- Class I, Division 2 option (Type HL)
- Applicable for street lighting, architectural lighting, bay lighting, floodlighting, tunnel, and hazardous locations
Buy the Mean Well Series ELG LED Driver: 150W Dimming and IP67/IP65 Protection
Enhance your lighting setup with the reliable and efficient LED driver from the ELG-150 series. Designed for indoor and outdoor applications, it offers dual-mode voltage and current output, multiple dimming options, and an IP67/IP65 rating. With a lifetime over 50,000 hours and a 5-year warranty, this driver ensures durability and optimal performance. Easy to install and suitable for street, architectural, bay, flood, and tunnel lighting, making it your ideal choice for professional LED lighting systems.
Buy Mean Well ELG-150 series LED driver now and experience unmatched reliability, high efficiency, and versatile dimming options for professional lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL ELG15042DA?
You can click on the BUY or RFQ button to purchase ELG15042DA from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part ELG15042DA?
You can download the ELG15042DA datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of ELG15042DA?
MEAN WELL
