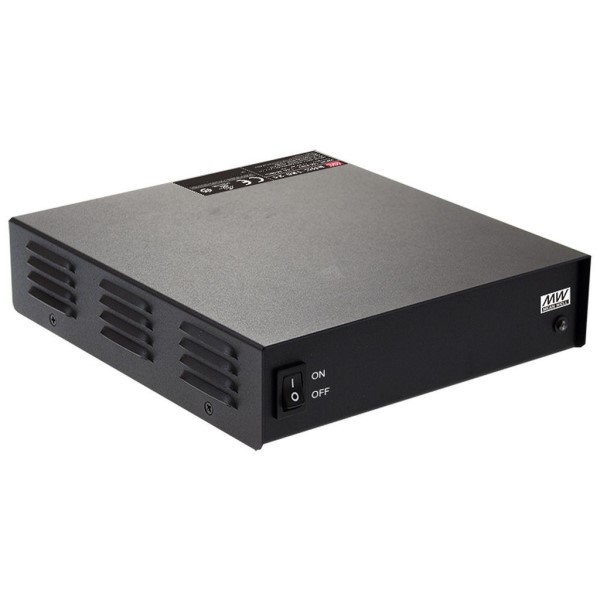

MEAN WELL ENC18012 Programmable Desktop Battery Charger
The MEAN WELL ENC-180-12 is a single output 180W AC/DC desktop type charger with a 3-stage programmable charging curve. This charger accommodates different battery types, such as lead-acid (gel, flooded and AGM) and li-ion (lithium iron and lithium manganese). With its rugged mechanical design and high efficiency circuitry, the ENC-180 operates within a wide ambient temperature range. It's ideal for radio system backup solutions, electric scooter chargers, and surveillance systems.
MEAN WELL ENC18012 Programmable Desktop Battery Charger Specifications:
- Rated Power: 172.8W
- Recommended Battery Capacity: 45 ~ 125AH (14.4V), 25 ~ 65AH (28.8V), 15 ~ 35AH (57.6V)
- Leakage Current from Battery: <1mA
- Output Voltage Range: 9 ~ 15V (14.4V), 18 ~ 30V (28.8V), 36 ~ 60V (57.6V)
- Frequency Range: 47 ~ 63Hz
- Power Factor: >0.98 (115VAC), >0.95 (230VAC)
- Efficiency: 92% (14.4V), 93% (28.8V), 91% (57.6V)
- Input Voltage: 90 ~ 264VAC, 127 ~ 370VDC
- Inrush Current: 70A at 230VAC
- Leakage Current: <3.5mA / 240VAC
- Over Voltage Protection: 31 ~ 36.5V (14.4V), 62.1 ~ 72.9V (28.8V), 15.5 ~ 18.2V (57.6V)
- Reverse Polarity Protection: By internal fuse
- Safety Standards: IEC62368-1, UL62368-1, EAC TP TC 004, BSMI CNS14336-1
- Withstand Voltage: 3KVAC (I/P-O/P), 2KVAC (I/P-FG), 0.5KVAC (O/P-FG)
- Isolation Resistance: 100M Ohms / 500VDC / 25℃ / 70% RH
- Working Temperature: -30 ~ +70℃
- Temperature Compensation: By NTC
- Working Humidity: 20 ~ 95% RH non-condensing
- Storage Temperature and Humidity: -40 ~ +85℃, 10 ~ 95% RH non-condensing
- Temp. Coefficient: ±0.05%/℃ (0 ~ 50℃)
- Vibration: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
- MTBF: 1445.6K hrs min. (Telcordia SR-332), 155.9K hrs min. (MIL-HDBK-217F)
- Dimension: 192*178*45.5mm (L*W*H)
- Weight: 1.15Kg
- Packing: 10pcs/12.5Kg /1.34CUFT
- Protection: Short circuit, Over voltage, Over temperature, Battery under voltage, Battery over voltage, Battery reverse polarity
- Boost Charge Voltage: 9 ~ 15V
- Float Charge Voltage: 18 ~ 30V
- Output Current: 12A
