MEAN WELL EPS65S15 Industrial Power Supply
EPS-65S series is a compact, highly efficient 65W switching power supply designed for industrial applications. Its small footprint measures 3" by 2" and accepts universal AC input of 80~264VAC. It delivers adjustable output voltages from 3.3V to 48V with up to 91% efficiency and features low no load power consumption below 0.1W. Suitable for Class II systems, it includes protections against short circuits, overloads, and overvoltage. With a wide operating temperature of -30°C to +70°C and humidity up to 90%, it ensures reliable operation in various environments.
MEAN WELL EPS65S15 Industrial Power Supply Specifications:
- Power Rating: 65W
- Input Voltage: 80~264VAC, 47~63Hz
- Output Voltage: 3.3V to 48V (adjustable)
- Rated Current: 10A at 3.3V, 8A at 5V, 5.424A at 12V, 4.344A at 15V, 1.364A at 48V
- Ripple & Noise: Max. 300mVp-p depending on model
- Efficiency: Up to 91%
- No Load Power Consumption: <0.1W
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -40°C to +85°C
- Vibration: 10Hz to 500Hz at 2G
- Dimension: 76.2mm x 50.8mm x 24mm
- Protections: Short circuit, Overload, Overvoltage
- Isolation Level: 2x MOPP, Up to 3KVAC withstand voltage
- Safety Standards: UL60950-1, TUV EN60950-1
- MTBF: 959,100 hours (minimum)

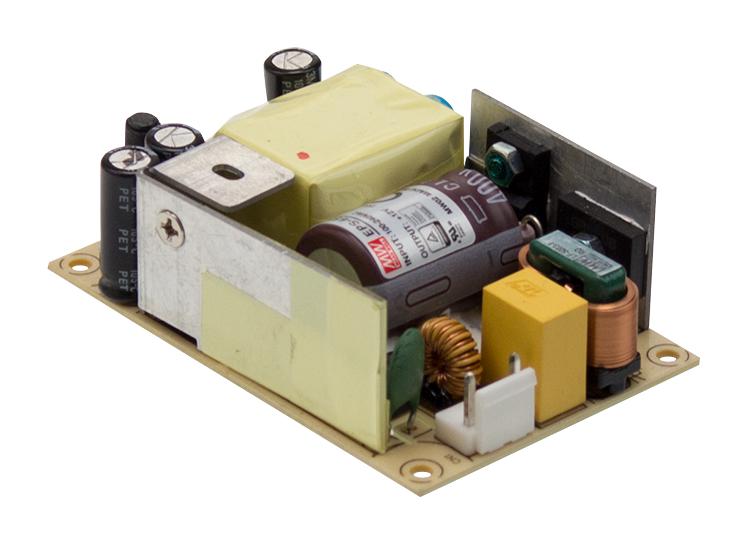

Buy the Buy Mean Well EPS-65S Series Power Supply Part Number EPS65S15 Online
Purchase the reliable and efficient industrial power supply online today. The EPS-65S series offers stable output, robust protections, and energy-saving features, making it ideal for factory automation, electrical equipment, and mechanical systems. Its compact size fits 1U applications and its wide temperature range guarantees performance in diverse environments. Enjoy quick delivery, excellent support, and secure checkout to keep your projects running smoothly with this high-quality power solution.
Order your Mean Well EPS-65S-15 power supply today and ensure reliable, high-efficiency power for your industrial and automation projects.
