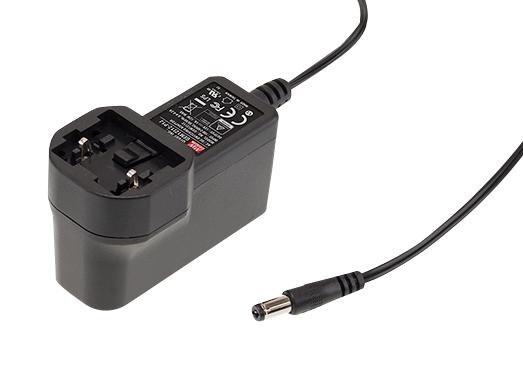

MEAN WELL GEM12I24P1J Medical Power Adapter
The GEM12I24P1J is a highly reliable, compact 12W wall-mounted medical power adapter series designed for various medical devices such as blood glucose meters, blood pressure monitors, and sleep apnea equipment. Its international safety standards compliance includes 2*MOPP and ultra low leakage current under 100A, making it suitable for direct patient contact applications. Features include interchangeable AC plugs, high efficiency up to 87%, low no-load power consumption, and robust flame-retardant plastic casing. The power supply supports universal input (80-264VAC), with protections against short circuit, overload, and over-voltage, ensuring safety and durability.
MEAN WELL GEM12I24P1J Medical Power Adapter Specifications:
- Power output: 12W
- Input voltage: 80VAC to 264VAC
- Output voltage: 5V, 7.5V, 12V, 15V, 18V, 24V options
- Rated current: 2.44A (5V), 1.68A (7.5V), 1.33A (12V)
- Ripple & noise: 60mVp-p for standard models, up to 100mVp-p for USB models
- Efficiency: Up to 87%
- No-load power consumption: <0.075W
- Leakage current: < 100A
- Protection: Short circuit, Overload, Over voltage
- Operating temperature: -20°C to +70°C
- Dimensions: 73.9mm x 39mm x 48.5mm
- Safety standards: IEC60601-1, TUV EN60601-1, UL, CSA, EN55011, FCC
- Fuse Protection: Overvoltage clamp via zener diode
- Housing: Fully enclosed flame-retardant plastic
- Efficiency regulation: EISA 2007 Level VI and EU ErP
- Warranty: 3 years
Buy the Medical Power Supply Series GEM12 Series 12W: GEM12I24P1J
Order the GEM12I24P1J medical power adapter online today and experience unmatched reliability, safety, and efficiency for your medical devices. This versatile 12W power supply features interchangeable AC plugs suitable for international use, ensuring compatibility across global markets. Its high efficiency of up to 87% and ultra low no-load power consumption below 0.075W help you save energy while meeting strict medical safety standards such as IEC60601-1 and UL. Designed with a rugged flame-retardant plastic case, it ensures durability and safety in critical medical environments. Secure your supply now!
Buy GEM12I24P1J medical power adapter now and enjoy reliable, high-efficiency performance with interchangeable plugs for global medical applications.
Frequently Asked Questions
Where can I buy MEAN WELL GEM12I24P1J?
You can click on the BUY or RFQ button to purchase GEM12I24P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GEM12I24P1J?
You can download the GEM12I24P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GEM12I24P1J?
MEAN WELL
