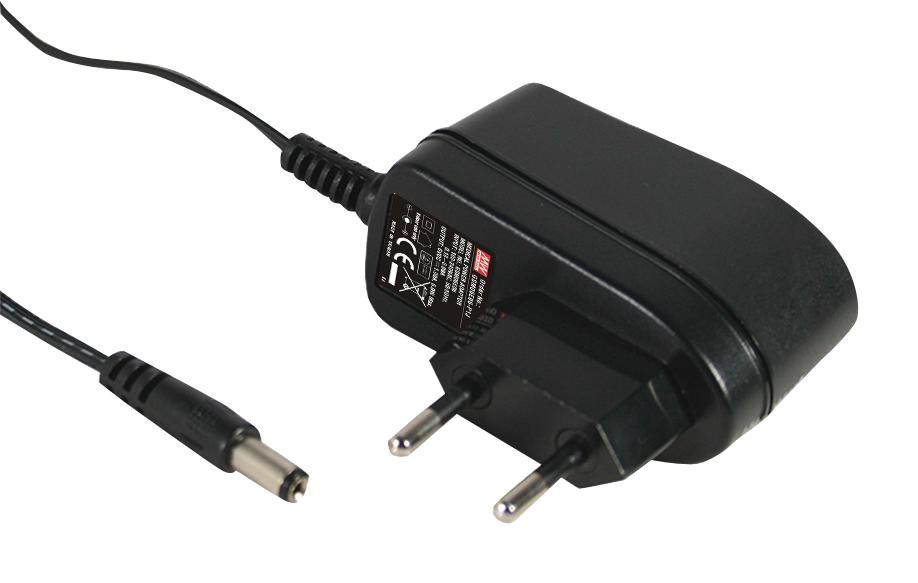

MEAN WELL GSM06E24P1J Medical Power Adapter
GSMO6E series is a high-reliability, medical-grade 6W power adapter designed for various medical devices. It features universal AC input from 85VAC to 264VAC, with output voltages ranging from 5VDC to 24VDC. The fully enclosed plastic case provides double insulation, and it complies with international medical safety standards, including 2 x MOPP. With efficiencies up to 82%, ultra-low leakage current below 50uA, and low no-load power consumption under 0.3W, it ensures energy savings. Its design includes protections for short circuit, overload, overvoltage, and withstands working temperatures from 0°C to +50°C, making it suitable for portable, bedside, or embedded medical systems.
MEAN WELL GSM06E24P1J Medical Power Adapter Specifications:
- Input Range: 85-264VAC, 47-63Hz
- Output Voltages: 5V, 7.5V, 12V, 15V, 18V, 24V
- Rated Power: 6W
- Efficiency: Up to 82%
- Leakage Current: <50uA
- No Load Power Consumption: <0.3W
- Dimensions: 34mm x 66mm x 42.5mm (L*W*H)
- Enclosure: Fully plastic, flame retardant (94V-0)
- Certifications: TUV EN60601-1, EN60601-1-11, UL, CE
- Overload Protection: Hiccup mode, auto-recovery
- Overvoltage Protection: Zener diode clamp
- Operating Temperature: 0°C to +50°C
- Humidity: 20% to 90% RH non-condensing
- Vibration: 10-500Hz, 2G, 10 min/cycle
- MTBF: >500,000 hours
Buy the Meditech Series Medical Power Adapter: GSM06E24P1J
Enhance your medical devices with the Meditech Series GSM06E24P1J power adapter, a reliable solution providing stable output, low leakage, and compliance with international safety standards. Designed for portable and bedside medical equipment, this 6W device offers high efficiency, low quiet operation, and robust protections against overload and overvoltage. Compact and easy to install, it ensures continuous, safe power supply, making it ideal for medical professionals seeking durable, energy-efficient power solutions for critical healthcare applications. Purchase online today for quality and reliable performance.
Get Meditech GSM06E24P1J today—built for medical precision, energy efficiency, and durable performance.
Frequently Asked Questions
Where can I buy MEAN WELL GSM06E24P1J?
You can click on the BUY or RFQ button to purchase GSM06E24P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM06E24P1J?
You can download the GSM06E24P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM06E24P1J?
MEAN WELL
