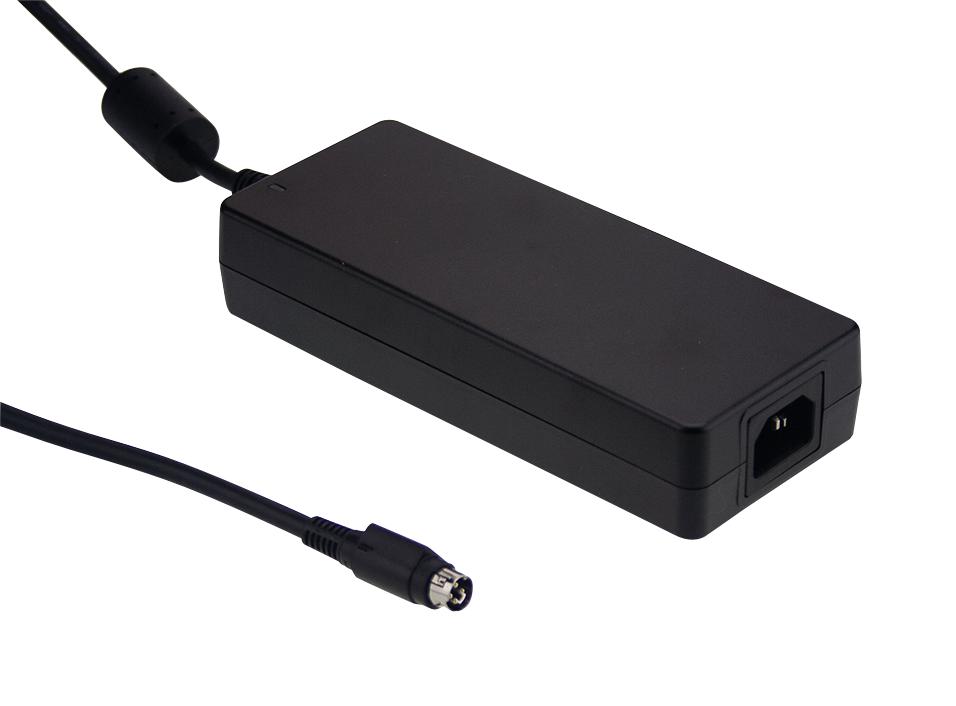

MEAN WELL GSM160A20R7B Medical Power Adapter
GSM160A is a highly reliable, 160W medical power adapter series designed for a variety of medical devices requiring high efficiency and safety. With universal AC input, excellent energy savings up to 94%, and ultra-low leakage current below 100uA, it complies with international standards such as IEC 60601-1 (2*MOPP) safety certification. The fanless design ensures quiet operation from -30°C to +70°C, and multiple output voltages (12VDC to 48VDC) suit clinical equipment like patient monitors, dialysis machines, and portable breath devices. It's a robust, energy-efficient power solution with comprehensive protections and a 3-year warranty.
MEAN WELL GSM160A20R7B Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC, 47-63Hz
- Output Power: 138W to 160W depending on model
- Output Voltages: 12VDC, 15VDC, 20VDC, 24VDC, 48VDC
- Rated Current: 11.54A (12V), 9.64A (15V), 8A (20V), 6.67A (24V), 3.34A (48V)
- Ripple & Noise: Max 80mVp-p (12V), 100mVp-p (15V), 150mVp-p (20V), 180mVp-p (24V), 240mVp-p (48V)
- Efficiency: Up to 94%
- Leakage Current: <100uA (earth leakage), <100uA (touch current)
- Protection: Short circuit, overload, over voltage, over temperature
- Operating Temperature: -30°C to +70°C, derating as per curve
- Safety Standards: IEC 60601-1 (2*MOPP), UL, TUV approved
- Isolation Level: 2xMOPP between primary and secondary
- Case Material: Flame-retardant plastic, UL 94V-0 rated
- Size: 175 x 72 x 35 mm, lightweight design
- Warranty: 3 years
- Certifications: Medical safety, energy efficiency standards compliance
- Built-in active PFC, fanless operation, LED indicator for power on
Buy the Buy MW Medical Power Adapter GSM160A Part Number GSM160A20R7B Online
Order the MW GSM160A20R7B medical power adapter online now and enjoy high reliability, compact design, energy efficiency up to 94%, and comprehensive safety features. Perfect for critical healthcare equipment such as patient monitors, dialysis machines, and portable respirators. It offers universal input voltage, low leakage current below 100uA, and long lifespan with a 3-year warranty. With certifications meeting international safety standards, this power supply ensures your medical devices operate efficiently and safely around the clock. Purchase today for dependable performance.
Buy MW GSM160A20R7B now and experience unmatched reliability and energy efficiency for medical devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM160A20R7B?
You can click on the BUY or RFQ button to purchase GSM160A20R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM160A20R7B?
You can download the GSM160A20R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM160A20R7B?
MEAN WELL
