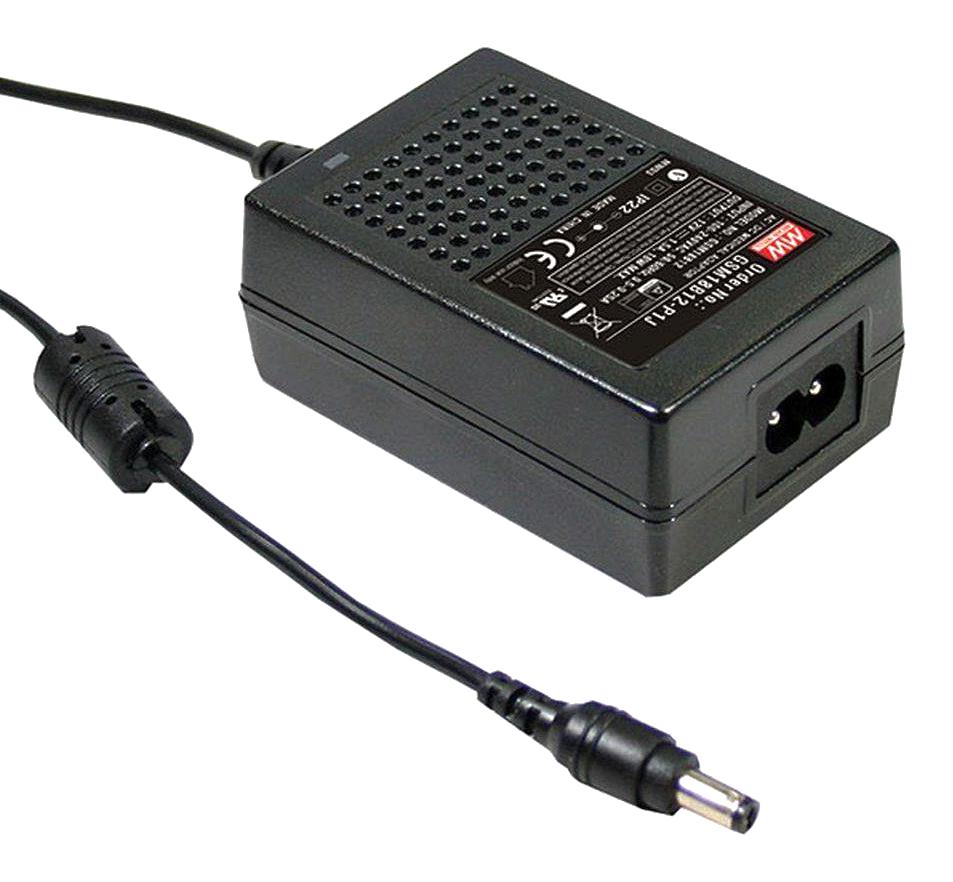

MEAN WELL GSM18B07P1J Medical Power Adapter
The GSM18B07P1J is a high-reliability, 18W medical power adapter designed for medical devices and portable applications. It features a universal input range of 80VAC to 264VAC, high efficiency up to 88%, ultra low leakage current below 50μA, and full compliance with international medical safety standards (2 x MOPP). Crafted with a flame-retardant plastic case, it offers protections against short circuits, overloads, and overvoltage, with a simple LED indicator. This Class II power supply operates within +60°C, fits various medical gadgets, and boasts a 3-year warranty for durable, safe performance.
MEAN WELL GSM18B07P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Voltage: 7.5V, 9V, 12V, 15V, 18V, 24V, 48V (various model options)
- Rated Power: 15W to 18W depending on model
- Efficiency: Up to 88%
- Leakage Current: Less than 50μA
- Operating Temperature: -25°C to +60°C
- Protection: Short circuit, Overload, Overvoltage
- Input Connector: IEC320-C8 2-pin inlet
- Case Material: Flame-retardant plastic (94V-0)
- Dimensions: Approximately 79mm x 54mm x 33mm
- Safety Standards: EN60601-1, TUV, EAC, UL 60601-1
- MTBF: Over 796,700 hours
- Warranty: 3 years
Buy the Power Supply Series GSM18B Medical Adapter: GSM18B07P1J
Order the GSM18B07P1J medical power adapter online today and experience superior safety, high efficiency, and reliable performance for portable medical equipment. This 18W device offers universal input compatibility, ultra low leakage current, and full compliance with international standards ensuring safe contact with patients. Its rugged flame-retardant plastic case, protections against faults, and a 3-year warranty make it ideal for both clinical and portable applications. Make your purchase now for a durable, compliant, and energy-efficient power solution tailored to medical devices.
Get GSM18B07P1J today—built for medical-grade reliability and safe operation in portable healthcare devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM18B07P1J?
You can click on the BUY or RFQ button to purchase GSM18B07P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM18B07P1J?
You can download the GSM18B07P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM18B07P1J?
MEAN WELL
