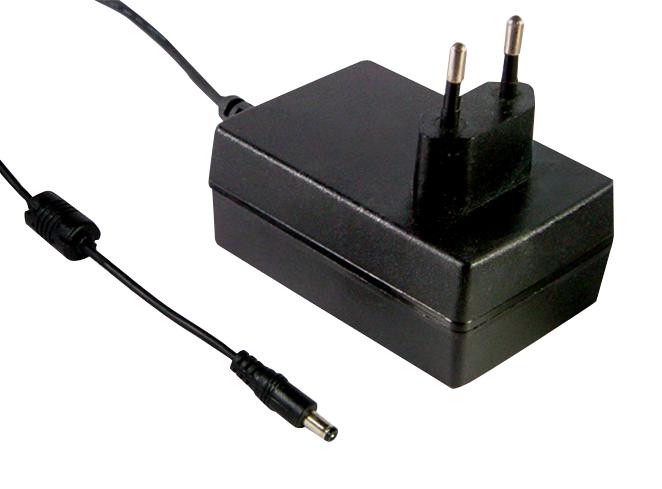

MEAN WELL GSM18E18P1J Medical Power Adapter
The GSM18E series is a highly reliable 18W medical power adapter designed for portable, miniature medical devices. It features an ultra-low leakage current (<50A), high efficiency up to 88%, and complies with international safety standards, including 2 x MOPP protection. This wall-mounted adapter has a universal input range from 80VAC to 264VAC, suitable for applications such as blood glucose meters, blood pressure monitors, nebulizers, and inhalers. Its fully enclosed plastic case provides durable insulation, making it ideal for direct patient contact environments and medical safety compliance.
MEAN WELL GSM18E18P1J Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC, 47~63Hz
- Output Power: 15W to 18W depending on model
- Output Voltages: 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 48V
- Rated Currents: 3A, 2A, 2A, 1A, 0.75A, 0.375A respectively
- Ripple & Noise: 60mVp-p to 240mVp-p depending on model
- Voltage Tolerance: ±2% to ±5% depending on model
- Efficiency: Up to 88%
- Leakage Current: Less than 50A
- Protection: Short circuit, Overload, Over voltage, Hiccup mode
- Working Temperature: -25°C to +60°C with derating
- Dimensions: 79mm x 54mm x 33mm
- Enclosure: Fully enclosed flame-retardant plastic case
- Certifications: TUV EN60601-1-11, UL, IEC60601
Buy the ICBCe Series GSM18E 18W Medical Power Adapter: GSM18E18P1J
Purchase the ICBCe Series GSM18E18P1J medical power adapter online today and experience reliable operation for your portable medical devices. Designed with high efficiency, low leakage current, and full medical safety standards, this 18W adapter is ideal for blood glucose meters, blood pressure monitors, nebulizers, and inhalers. Its compact, fully enclosed plastic case ensures durability and safety, meeting international certifications such as EN60601 and UL. Benefit from a 3-year warranty and energy-saving features that comply with EU ErP standards. Order now to enhance your medical equipment’s performance and safety.
Order your ICBCe Series GSM18E18P1J high-reliability medical adaptor today and ensure safe, efficient power for your portable medical devices.
