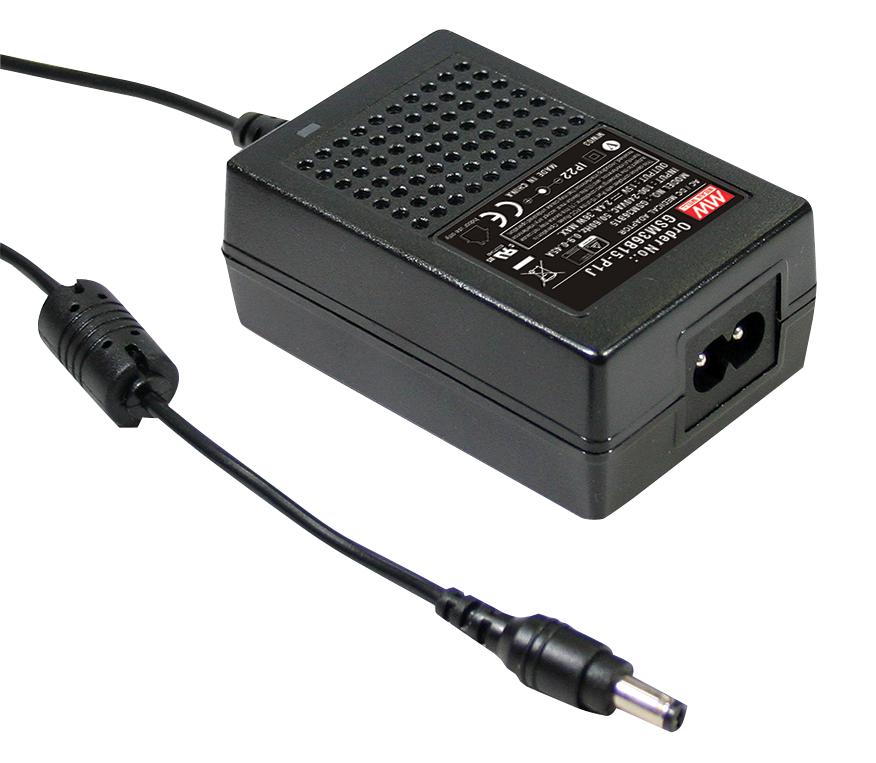

MEAN WELL GSM36B15P1J Medical Power Adapter
The GSM36B series is a highly reliable, medical-grade 36W power adaptor designed for portable medical devices such as blood glucose meters, blood pressure monitors, and nebulizers. It features universal AC input (80VAC-264VAC), high efficiency up to 88%, ultra-low leakage current (<50uA), and complies with international medical safety standards (2 x MOPP). The plastic enclosure provides insulation and safety, with protections for short circuit, overload, and over voltage. It includes an LED indicator, optional lock DC plug, and a 3-year warranty, ensuring durability and safety for medical applications.
MEAN WELL GSM36B15P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47-63Hz
- Output Power: 36W
- Output Voltage: 5VDC to 48VDC (various models)
- Rated Current: 4A (5V), 3A, 2.44A, 2A, 1.58A, 0.75A (other voltages)
- Ripple & Noise: Max. 150mVp-p
- Efficiency: Up to 88%
- Leakage Current: <50uA
- Protections: Short circuit, Overload, Over voltage
- Protection Type: Hiccup mode, automatic recovery
- Operating Temperature: -25°C to +60°C
- MTBF: 657,400 hours at 25°C
- Enclosure: Fully enclosed plastic, flame retardant (UL 94V-0)
- Certifications: UL60601-1, TUV EN60601-1, FCC Part 15 B
- Dimensions: 79*54*33 mm
- Weight: 235g
- Additional Features: LED power indicator, optional lock-type DC plug
Buy the Buy Mean Well GSM36B Series Medical Power Adaptor Part Number GSM36B15P1J Online
Purchase the Mean Well GSM36B series medical power adaptor online today to ensure your portable medical devices like blood glucose meters and nebulizers operate reliably and safely. With a universal input range of 80VAC to 264VAC, high efficiency up to 88%, ultra-low leakage current, and full safety certifications, this adaptor guarantees consistent performance in medical environments. Its robust plastic enclosure offers insulation and durability, complemented by protections against short circuits, overloads, and over voltage. Buy now to enjoy a 3-year warranty and energy-efficient operation.
Get Mean Well GSM36B15P1J today—designed for medical accuracy, safety, and long-lasting reliability in portable diagnostic devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM36B15P1J?
You can click on the BUY or RFQ button to purchase GSM36B15P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM36B15P1J?
You can download the GSM36B15P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM36B15P1J?
MEAN WELL
