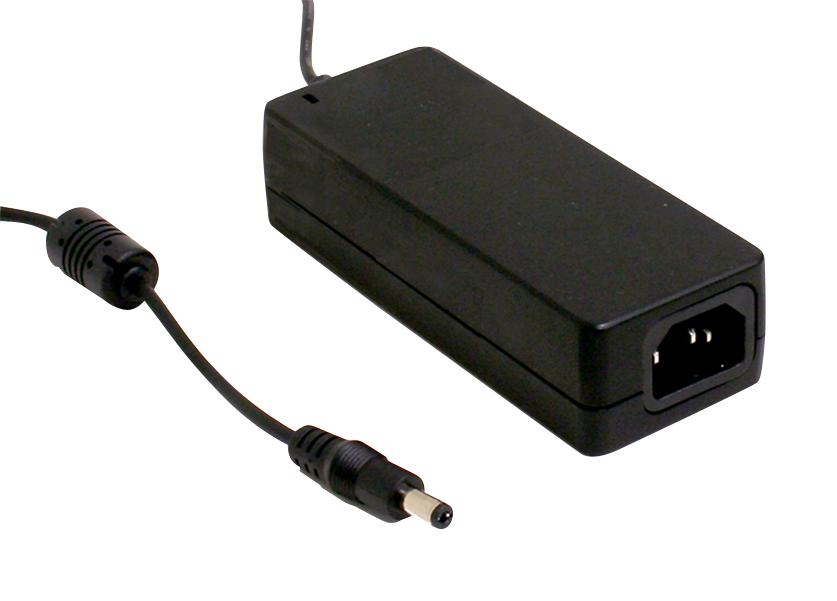

MEAN WELL GSM40A15P1J Medical Power Supply
GSM40A is a highly reliable, 40W medical power supply series designed to meet strict safety standards and efficiency requirements. It features universal AC input (80VAC to 264VAC), low leakage current (<100μA), and high efficiency up to 91%. Suitable for various medical devices including infusion pumps, hemodialysis machines, and medical monitors, the adaptor complies with international safety standards such as 2*MOPP isolation, UL 60601-1, and EN60601-1. Its rugged plastic case ensures durability, and the series offers models with output voltages from 5VDC to 48VDC, catering to diverse medical application needs.
MEAN WELL GSM40A15P1J Medical Power Supply Specifications:
- Input Voltage: 80VAC to 264VAC
- Input Frequency Range: 47Hz to 63Hz
- Output Power: Up to 40W
- Output Voltages: 5V, 7.5V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 5A at 5V, 5.34A at 7.5V, 4.45A at 12V, 3.34A at 15V, 2.67A at 18V, 2.22A at 24V, 0.84A at 48V
- Ripple & Noise: Max 180-240mVp-p depending on model
- Voltage Tolerance: ±3% to ±5%
- Efficiency: Up to 91%
- Leakage Current: <100μA
- Working Temperature: -30°C to +60°C (derating applies)
- Protection: Short circuit, Overload, Over voltage
- Isolation: 2*MOPP (primary-secondary), 1*MOPP (primary-earth)
- Standards: IEC 60601-1, EN 60601-1, FCC Part 15 Class B
- Dimensions: 125mm x 50mm x 31.5mm
- Enclosure: Fully enclosed plastic case
- Warranty: 3 years
Buy the Mean Well Series GSM40A Medical Power Supply: GSM40A15P1J
Order the Mean Well GSM40A15P1J medical power adaptor today for reliable performance across diverse medical applications. This 40W high-efficiency unit offers universal AC input, ultra-low leakage current, and high safety certifications, making it ideal for infusion pumps, dialysis equipment, and medical monitors. Its rugged plastic enclosure ensures durability and safety, with protection features including short circuit, overcurrent, and overvoltage safeguards. With a compact design, low power consumption, and a 3-year warranty, this adaptor guarantees stable, compliant power for critical healthcare devices worldwide.
Get Mean Well GSM40A15P1J today—built for medical precision, energy efficiency, and long-lasting durability.
Frequently Asked Questions
Where can I buy MEAN WELL GSM40A15P1J?
You can click on the BUY or RFQ button to purchase GSM40A15P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM40A15P1J?
You can download the GSM40A15P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM40A15P1J?
MEAN WELL
