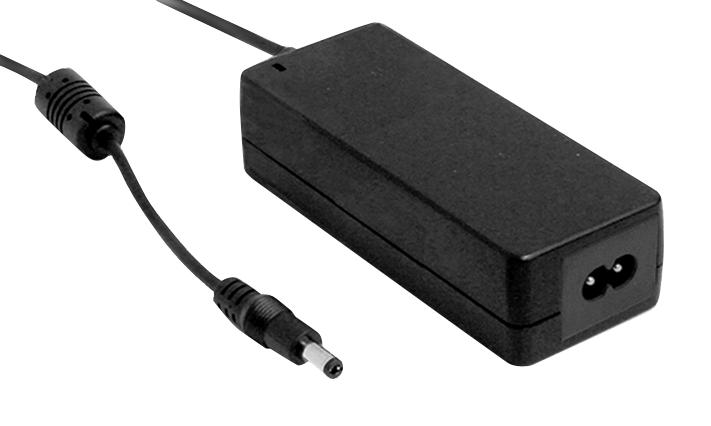

MEAN WELL GSM40B05P1J Medical Power Adapter
GSM40B is a highly reliable 40W medical power adapter designed for various medical devices requiring stable and efficient power supply. It features universal AC input from 80VAC to 264VAC, low leakage current (<50uA), and high efficiency up to 91%. Approved for medical safety standards with 2*MOPP, it is suitable for direct contact with patients. The fully enclosed plastic case, fanless design, and protective features ensure safety, durability, and low energy consumption. It supports multiple output voltages from 5VDC to 48VDC, making it versatile for medical applications like monitors, hemodialysis, and portable devices, with a 3-year warranty.
MEAN WELL GSM40B05P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47-63Hz
- Output Power: 40W
- Output Voltages: 5V, 7.5V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 5A (5V), 3.34A (7.5V), 2.22A (12V), 1.67A (15V), 0.84A (18V), 1.67A (24V), 0.84A (48V)
- Ripple & Noise: Max 100-240mVp-p depending on model
- Efficiency: Up to 91%
- Leakage Current: <50uA
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Operating Temperature: -30°C to +60°C
- Dimensions: 102.1 x 55 x (unspecified height) mm
- Safety & Standards: UL60601-1, TUV EN60601-1, IEC 60601-1, Class II power, 2*MOPP isolation, compliant with multiple EMC standards
- Construction: Fully enclosed plastic case, supporting medical contact, low power consumption <0.1W no load
- Additional: Optional lock type DC plug, 3-year warranty
Buy the Buy Hi Rel Medical Power Adapter Part Number GSM40B05P1J Online
Order the highly reliable medical power adapter GSM40B series online today to experience superior safety, efficiency, and durability. With versatile output voltages from 5V to 48V, it is suitable for a wide range of medical devices including monitors, portable devices, and dialysis machines. Features such as low leakage current, high efficiency up to 91%, and compliance with international safety standards ensure optimal performance and safety. Its fanless design, fully enclosed plastic case, and protective features make it ideal for sensitive medical environments, backed by a three-year warranty for peace of mind.
Get Hi Rel Medical Power Adapter GSM40B05P1J today—built for precision, safety, and long-lasting durability in medical environments.
Frequently Asked Questions
Where can I buy MEAN WELL GSM40B05P1J?
You can click on the BUY or RFQ button to purchase GSM40B05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM40B05P1J?
You can download the GSM40B05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM40B05P1J?
MEAN WELL
