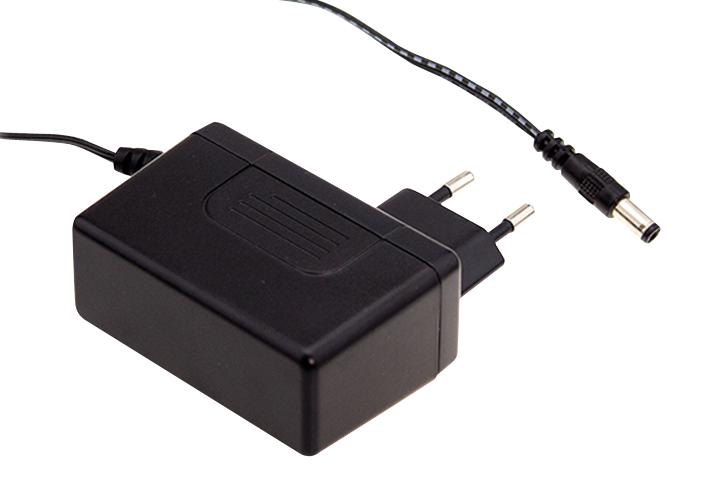

MEAN WELL GSM60E18P1J Medical Power Adapter
GSM60E18P1J is a compact, ultra-slim, wall-mounted medical power adaptor providing 60W of reliable, efficient power. Suitable for various medical electronic devices, it features low leakage current (<100μA), high efficiency up to 90%, and complies with international safety standards including EN60601-1. Designed with a fully enclosed plastic case, it accepts input voltages from 80VAC to 264VAC and delivers output voltages between 5VDC and 48VDC. Its protections include short circuit, overload, and overvoltage safeguards, making it ideal for portable and clinical applications. The adaptor is energy-efficient, with low no-load power consumption (<0.15W) and meets EU ErP Level VI requirements.
MEAN WELL GSM60E18P1J Medical Power Adapter Specifications:
- Input Voltage: 80~264VAC
- Output Voltage: 18VDC
- Rated Power: 60W
- Current Range: 0~3.33A
- Ripple & Noise: 120mVp-p maximum
- Voltage Tolerance: ±3.0%
- Efficiency: up to 90%
- No-load Power Consumption: <0.15W
- Protections: Short circuit, Overload, Overvoltage
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -30°C to +85°C
- Dimensions: 75.5mm x 32mm x 47.5mm
- Safety Standards: EN60601-1, EN60601-1-11, UL, TUV
- Isolation Level: 2 x MOPP
- Working Humidity: 20% to 90% RH non-condensing
- Life Expectancy: 100,000 hours at full load and 40°C
Buy the Mean Well Series GSM Series Medical Power Adapter: GSM60E18P1J
Order the reliable GSM60E18P1J medical power adaptor online today and ensure your medical devices operate with optimal safety and efficiency. This ultra-slim, high-performance power supply features an efficiency of up to 90%, low no-load power consumption below 0.15W, and comprehensive safety protections—including short circuit, overvoltage, and overload safeguards. Its compact, fully enclosed plastic case makes it suitable for portable medical applications, meeting international standards such as EN60601-1. Get this energy-efficient, durable power solution now and enhance the safety and reliability of your medical electronic devices.
Buy Mean Well GSM60E18P1J now and experience unmatched reliability and performance for your medical electronic devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM60E18P1J?
You can click on the BUY or RFQ button to purchase GSM60E18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM60E18P1J?
You can download the GSM60E18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM60E18P1J?
MEAN WELL
