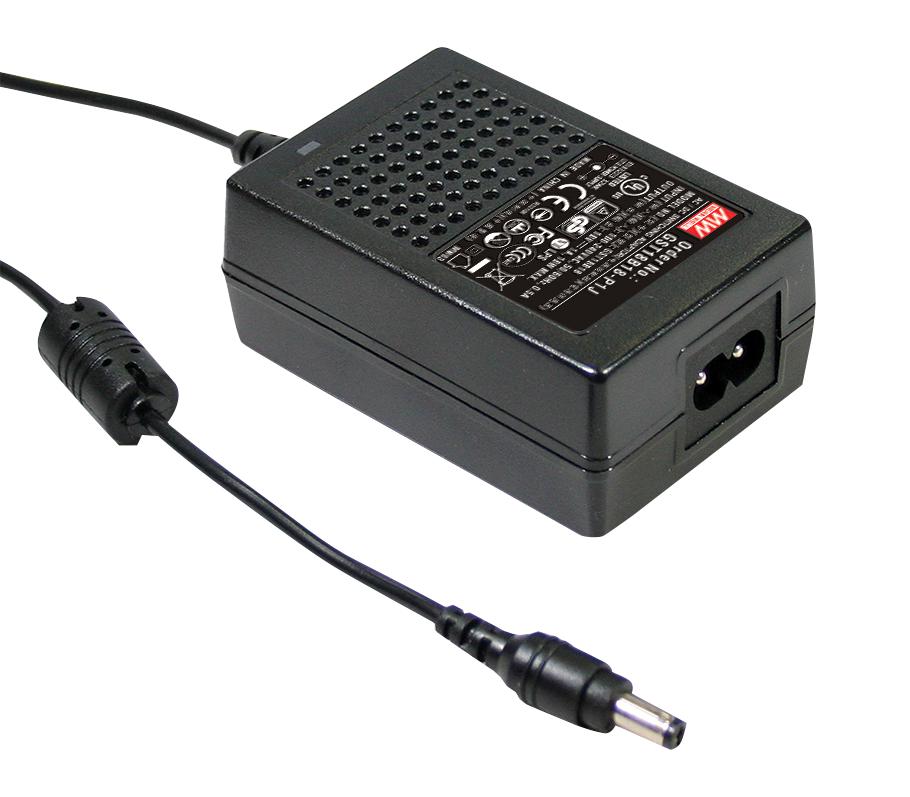

MEAN WELL GST18B24P1J industrial power adapter
The GST18B24P1J is a high-reliability, 18W industrial power adaptor designed for demanding electronic applications. It features a universal input range from 85VAC to 264VAC and offers an output of 24VDC at 0.75A. The fully enclosed plastic case provides double insulation and safety compliance, with protections including overcurrent, overvoltage, and short circuit safeguarding. Its low no-load power consumption below 0.075W and efficiency up to 89% make it energy-efficient. Suitable for industrial, telecommunication, and consumer electronics, this model is certified for international safety standards and operates reliably up to +70°C.
MEAN WELL GST18B24P1J industrial power adapter Specifications:
- Input Voltage Range: 85-264VAC, 47-63Hz
- Output Voltage: 24VDC
- Rated Current: 0.75A
- Rated Power: 18W
- Ripple & Noise Max: 240mVp-p
- Voltage Tolerance: +20%
- Line Regulation: +10%
- Load Regulation: +20%
- Efficiency: Up to 89%
- Protections: Overcurrent, Overvoltage, Short circuit - Hiccup mode
- Operating Temperature: -30°C to +70°C
- Humidity: 20% to 90% RH non-condensing
- Safety Standards: UL, TUV, CB, BSMI, CCC, AS/NZS
- Dimensions: 79mm x 54mm x 33mm
- Enclosure: Fully enclosed plastic case with double insulation
- Certification: IEC, UL, TUV, CE, CB, BSMI, CCC
Buy the Mean Well 18WAC-DC High Reliability Industrial Adaptor – Reliable 24VDC Power Supply for Industrial Applications
Purchase the high-performance GST18B24P1J industrial power adapter online today to ensure your electronic projects and industrial equipment operate reliably. With an output of 24VDC at 0.75A, it offers excellent efficiency up to 89% and features protections against overcurrent, overvoltage, and short circuits. Designed with a fully enclosed plastic case for durability and safety, this energy-efficient adapter complies with international safety standards, making it an ideal choice for telecommunications, consumer electronics, and industrial applications. Get yours now to experience dependable power for demanding environments.
Order your Mean Well Series GST18B24P1J today and give your projects the dependable quality they deserve with a compact, efficient power solution.
Frequently Asked Questions
Where can I buy MEAN WELL GST18B24P1J?
You can click on the BUY or RFQ button to purchase GST18B24P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST18B24P1J?
You can download the GST18B24P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST18B24P1J?
MEAN WELL
