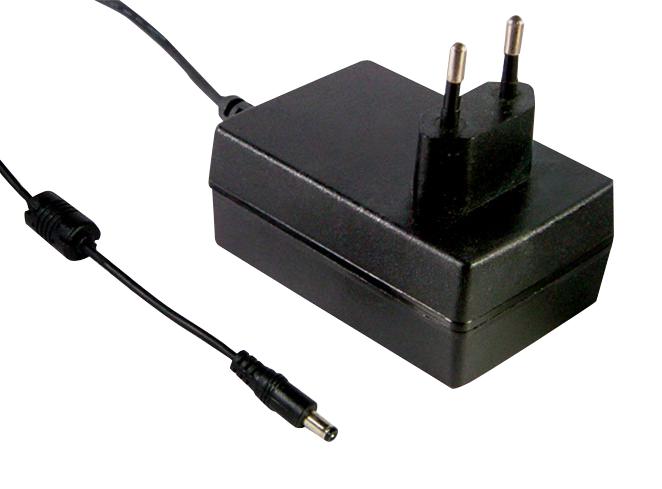

MEAN WELL GST18E18P1J industrial power adaptor
GST18E series is a high-reliability, 18W industrial AC-DC power adaptor designed for versatile applications. It features a full range of input voltage from 85VAC to 264VAC, supporting various consumer electronic and industrial equipment. With a compact, fully enclosed plastic case, the adaptor provides excellent insulation and safety compliance, including UL and EMC standards. It offers an efficiency of up to 89%, low no-load power consumption below 0.075W, and protections against short circuits, overloads, and overvoltage. Certified for international safety, it is suitable for harsh environments up to +70°C temperature and features a green LED indicator for power status.
MEAN WELL GST18E18P1J industrial power adaptor Specifications:
- Input Voltage Range: 85VAC to 264VAC
- Output Power: 18W
- Output Voltage: 12V DC (model specific)
- Rated Current: 1.5A (model specific)
- Ripple & Noise: 80-240mVp-p depending on model
- Efficiency: Up to 89%
- Protections: Short circuit, Overload, Over voltage
- Operating Temperature: -30°C to +70°C
- Dimensions: Approximately 79.54mm x 33mm x 70mm
- Safety Standards: UL, TUV EN60950-1, UL Listed
- Certifications: CB, CE, LPS compliant
- No Load Power Consumption: < 0.075W
- Enclosure Material: Flame-retardant plastic (94V-0)
- Protection Mode: Hiccup automatic recovery
- Isolation Resistance: 100MΩ at 500VDC
- EMC Compliance: EN55022 class B, EN61000-3-2,3
- Humidity: 20% to 90% RH non-condensing
Buy the Industrial Series Power Supply: GST18E Series 18W Power Adapter
Experience reliable power with our GST18E18P1J industrial power adaptor. Designed for robust performance in harsh conditions, it offers high efficiency up to 89%, low no-load consumption, and comprehensive safety features. Easy to install with universal AC input, it supports a wide range of devices from consumer electronics to industrial equipment. Certified for international safety standards, it ensures long-term durability. Perfect for demanding environments requiring stable, safe, and energy-efficient power solutions, order online today for fast, secure delivery and excellent customer support.
Get GST18E18P1J today—built for precision, safety, and long-lasting durability in industrial environments.
