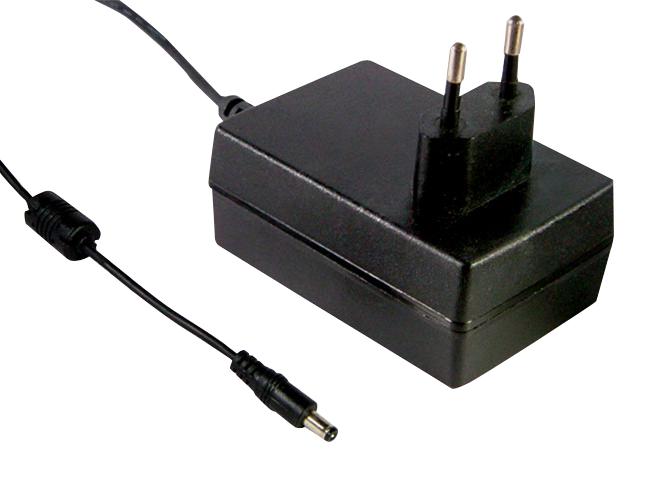

MEAN WELL GST25E05P1J Industrial Power Supply
The GST25E series is a 25W high-reliability industrial AC-DC power adaptor designed for various electronic applications. Featuring universal input voltage from 85VAC to 264VAC, it provides output voltages from 5V to 48V with high efficiency up to 89% and low no-load power consumption below 0.075W. Encased in a fully enclosed flame-retardant plastic case, it offers robust safety with protections against short circuit, overload, and overvoltage. Certified for international safety standards, GST25E series is ideal for consumer electronics, telecommunication, and industrial equipment operating in temperatures up to +70°C.
MEAN WELL GST25E05P1J Industrial Power Supply Specifications:
- Input Voltage: 85VAC to 264VAC
- Output Power: 25W
- Output Voltages: 5V, 7.5V, 12V, 15V, 18V, 24V, 28V, 48V
- Rated Current: 2.938A (5V), 2.554A (7.5V), 2.08A (12V), 1.66A (15V), 1.38A (18V), 1.044A (24V), 0.898A (28V), 0.524A (48V)
- Efficiency: Up to 89%
- No Load Power Consumption: < 0.075W
- Protections: Short circuit, Overload, Overvoltage
- Operating Temperature: -30°C to +70°C
- Flame Retardant Case: UL 94V-0
- Safety Certifications: TUV, CE
- Dimensions: Approximately 79.5mm x 33mm x 26mm
- Weight: ~ 60g
- Certifications: UL, CE, RoHS, Level VI Energy Efficiency
Buy the Mean Well Series GST25E 25W Industrial Power Supply: GST25E05P1J
Enhance your electronic systems with the reliable and energy-efficient Mean Well GST25E series 25W industrial power supply. Designed for durability, safety, and consistent performance, it features universal input voltage from 85VAC to 264VAC, multiple output options, low standby power consumption, and thermal resilience up to +70°C. Perfect for consumer electronics, telecommunication, and industrial equipment, this adaptor offers excellent efficiency, robust protections, and certifications to meet global standards. Invest in quality and reliability by purchasing online today.
Buy Mean Well GST25E05P1J now and experience unmatched reliability and performance in industrial power applications.
Frequently Asked Questions
Where can I buy MEAN WELL GST25E05P1J?
You can click on the BUY or RFQ button to purchase GST25E05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST25E05P1J?
You can download the GST25E05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST25E05P1J?
MEAN WELL
