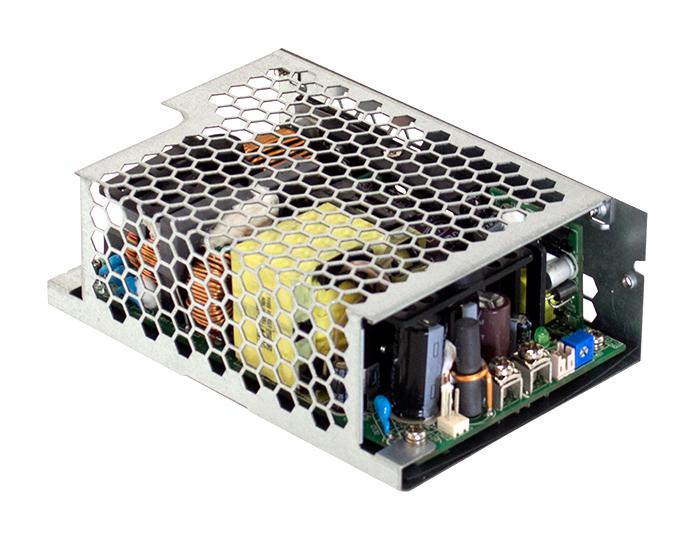

MEAN WELL RPS40024C medical power supply
RPS-400 is a 400W highly reliable medical power supply with a compact 5x3 inch footprint, accepting 80~264VAC input. It offers multiple output voltages between 12V and 48V with up to 94% efficiency and ultra-low no-load power consumption below 0.5W. Designed for medical safety and EMC standards (2 MOPP, IEC/EN60601-1), it suits BF-rated patient contact systems such as ventilators, dialysis machines, and sleep apnea devices. Available in PCB or enclosure models, it supports both Class I and Class II configurations, ensuring safety, low leakage current, and high reliability for medical equipment.
MEAN WELL RPS40024C medical power supply Specifications:
- Power Rating: 400W
- Input Voltage: 80~264VAC
- Output Voltages: 12V, 15V, 18V, 24V, 36V, 48V
- Output Current: 33.38A (12V), 26.7A (15V), 22.34A (18V), 16.7A (24V), 11.24A (36V), 8.4A (48V)
- Efficiency: Up to 94%
- No-Load Power Consumption: <0.5W
- Ripple & Noise: Max 200mVp-p
- Dimensions: 5'' x 3'' footprint
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Compliance: IEC/EN60601-1, ANSI/AAMI ES60601-1, UL, CAN/CSA, EMI Class B
- Isolation: 2xMOPP primary-secondary, 1xMOPP primary-earth
- Operating Altitude: Up to 4000 meters
- Working Temp: -30°C to +70°C
- Storage Temp: -40°C to +85°C
- Standby Output: 5V@0.6A, 12V@0.5A
- MTBF: 194,100 hours
- Warranty: 3 years
Buy the Buy MEAN WELL RPS-400 Part Number RPS40024C Online
Order the MEAN WELL RPS-400 medical power supply online today for dependable performance and high safety standards. This 400W unit features high efficiency up to 94%, ultra-low no-load power, and multiple output voltages suitable for various medical equipment such as dialysis, ventilators, and sleep apnea devices. Its compact design, compliance with international standards, and robust protections ensure optimal safety and reliability. Purchase now to ensure your medical systems operate seamlessly and securely with top-quality power supplies configured for both Class I and Class II systems.
Buy MEAN WELL RPS-400 now and experience unmatched reliability and performance in medical power supplies.
Frequently Asked Questions
Where can I buy MEAN WELL RPS40024C?
You can click on the BUY or RFQ button to purchase RPS40024C from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS40024C?
You can download the RPS40024C datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS40024C?
MEAN WELL
