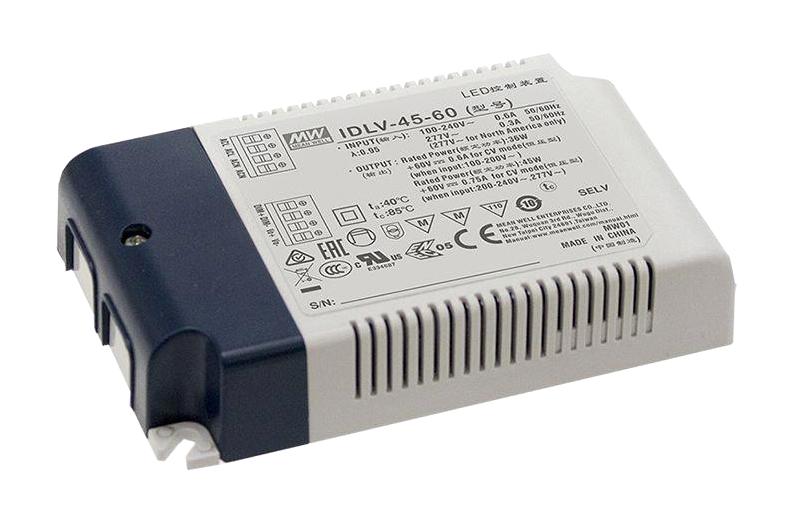

MEAN WELL IDLV4560 LED Driver
The 45W PWM Output LED Driver from the IDLV-45 series is a reliable, high-efficiency power supply designed for indoor LED lighting, decorative, and architectural applications. Operating from 90 to 295VAC, it provides constant voltage PWM output at 1KHz for customizable brightness control. Features include built-in active PFC, no load power consumption below 0.5W, and options for 2-in-1 dimming (0–10VDC and PWM). Its fanless design ensures silent operation, with an ambient temperature range of -20°C to +85°C and a durable plastic housing for versatile installation.
MEAN WELL IDLV4560 LED Driver Specifications:
- DC Voltage: 12V, 24V, 36V, 48V, 60V
- Rated Current: 3.0A, 1.88A, 1.254A, 0.944A, 0.754A
- Rated Power: 36W, 45.12W, 45W, 45.12W, 45W
- Dimming Range: 0~100%
- PWM Frequency: 1KHz (typical)
- Efficiency: up to 90%
- AC Input Voltage Range: 99~295VAC
- Voltage Tolerance: ±10%
- Operating Temperature: -20°C to +85°C
- Dimensions: 120mm x 75mm x 25mm
- Protection: Over current, short circuit, and over temperature
- No Load Power Consumption: <0.5W (Blank-Type)
- Leakage Current: <0.75mA at 277VAC
- Safety Standards: I/P-O/P withstand voltage 3.75KVAC
- Vibration Resistance: 10-500Hz, 2G
Buy the Mean Well IDLV-45 – Reliable PWM LED Driver for Industrial Applications
Purchase the reliable and high-performance Mean Well IDLV-45 PWM LED driver online now. With its efficiency reaching up to 90%, it provides stable voltage and versatile dimming options for indoor LED lighting, decorative, and architectural purposes. Easy to install, compact, and fanless, ensuring silent operation in demanding environments. Perfect for architects, lighting designers, and installers seeking durable, energy-efficient power supplies that meet safety standards and deliver consistent performance across a broad temperature range from -20°C to +85°C. Order today for quick delivery and expert support.
Order your Mean Well IDLV-45 series LED driver today and ensure dependable, high-efficiency lighting for your indoor and architectural projects.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV4560?
You can click on the BUY or RFQ button to purchase IDLV4560 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV4560?
You can download the IDLV4560 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV4560?
MEAN WELL
