MEAN WELL IRM0133 Miniature Power Supply
IRM-01 series is a 1W miniature AC-DC power supply module designed for reliable performance in industrial and electronic applications. Encapsulated in a phenolic case with silicone potting, it offers high efficiency up to 77%, low no-load power consumption below 0.075W, and compliance with EN55022 Class B EMC standards. Suitable for PCB and SMD mounting, it supports universal input voltage from 85~305VAC. The module provides protections against short circuit, overload, and overvoltage, with an operating temperature range of -30°C to +85°C, making it ideal for factory automation, industrial electronics, and mechanical equipment.
MEAN WELL IRM0133 Miniature Power Supply Specifications:
- Input Voltage Range: 85~305VAC, 120~430VDC
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V
- Rated Power: 1W
- Dimensions PCB: 33.7*22.2*15mm, SMD: 33.7*22.2*46mm
- Ripple & Noise: Max 150mVp-p (3.3V, 5V, 9V, 12V), 200mVp-p (15V, 24V)
- Efficiency: Up to 77%
- Operating Temperature: -30°C to +85°C
- Protections: Short circuit, overload, overvoltage
- Isolation Voltage: U/P-0: 3KVAC
- EMC: EN55022 Class B, EN61000-4-2/3/4/5/6/8/11
- MTBF: 1960K hours at 25°C
- Vibration Resistance: 10-500Hz, 5G for 60 min each axis
- Storage Temp/Humidity: -40°C to +100°C, 10-95% RH
- Working Humidity: 20-90% RH non-condensing

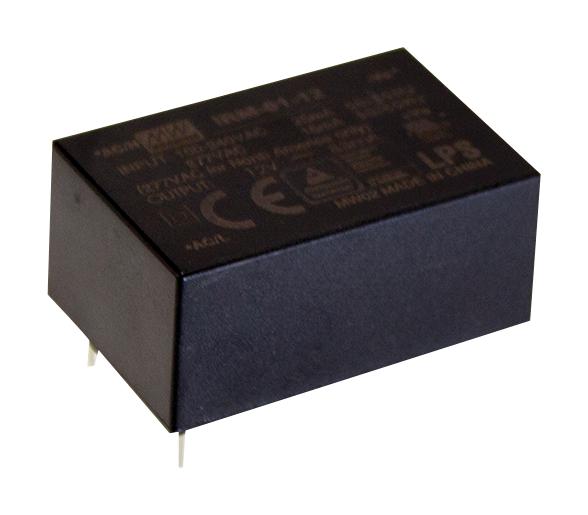

Buy the Mean Well IRM-0133 Series Miniature Power Supply Part Number IRM0133
Purchase the reliable and efficient IRM-01 power supply online today. Perfect for industrial automation, electronic equipment, and mechanical systems. Compact, with universal input, low no-load power consumption, and EMC compliance to EN55022 Class B, it ensures optimal performance. Easy to install with PCB and SMD options, it offers protections against short circuits, overloads, and overvoltage. Operating across -30°C to +85°C, delivers stable power, high durability, and long-term reliability for demanding industrial environments. Order now to ensure continuous performance.
Get Mean Well IRM-01 today—compact, high-efficiency power supply for industrial and electronic devices.
Frequently Asked Questions
Where can I buy MEAN WELL IRM0133?
You can click on the BUY or RFQ button to purchase IRM0133 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IRM0133?
You can download the IRM0133 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IRM0133?
MEAN WELL
