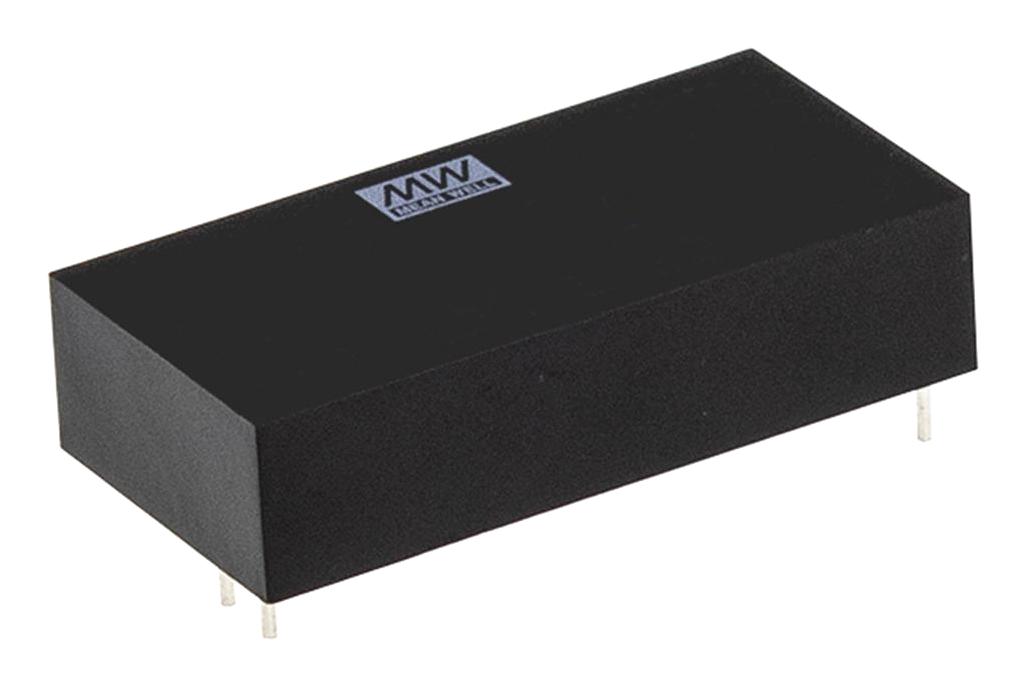

MEAN WELL MDS15C24 Medical Power Converter
The MDS15 series is a medical-grade DC-DC converter providing 15W power in a compact 2x1 inch package. It features wide input voltages from 9V to 75V, high efficiency up to 88%, and complies with IEC60601-1 safety standards with reinforced isolation. It is suitable for medical equipment such as monitors, carts, and oral care devices, thanks to its low leakage current, broad operating temperature from -40°C to +90°C, and protections including short circuit, overload, and under-voltage lockout. Designed for ultra-low noise and high reliability, it ensures safe operation in healthcare environments.
MEAN WELL MDS15C24 Medical Power Converter Specifications:
- Input Voltage Range: 9~18VDC, 18~36VDC, 36~75VDC
- Output Voltage: 5V, 12V, 15V, 24V
- Rated Power: 15W
- Efficiency: Up to 88%
- Isolation Voltage: 4000VAC (I/P to O/P), reinforced isolation
- Operating Temperature: -40°C to +90°C
- Ripple & Noise: 60mVp-p
- Line Regulation: 0.5%
- Load Regulation: +0.5%
- Short Circuit Protection: Continuous, automatic recovery
- Overload Protection: 110~185% rated output power
- Under Voltage Lockout: 7.5V, 15V, 33V depending on input
- Dimensions: 50.8mm x 25.4mm x 12mm (2x1x0.47 inches)
- Case Material: UL94V-0 plastic
- Temperature Coefficient: 0.03%/°C
- Soldering Temperature: 260°C for 1-3 sec.
- Vibration Resistance: 10-500Hz, 2G, 60 min./axis
Buy the Mean Well MDS15 Series – Reliable Medical Grade DC-DC Converter for Industrial Applications
Purchase the MDS15 series medical-grade DC-DC converter online today and ensure reliable power delivery for healthcare devices. With compact size, high efficiency up to 88%, and full IEC60601-1 safety approval, this converter provides optimal performance in medical environments. Its wide input range of 9V to 75V allows versatile application across different medical systems like monitors, carts, and oral care equipment. Durable and safe, it features reinforced isolation, low leakage current under 5μA, and protections against short circuits, overloads, and under-voltage conditions, making it the ideal choice for critical healthcare applications.
Get Mean Well MDS15 series today—built for precision and long-lasting durability in medical and industrial power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL MDS15C24?
You can click on the BUY or RFQ button to purchase MDS15C24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS15C24?
You can download the MDS15C24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS15C24?
MEAN WELL
