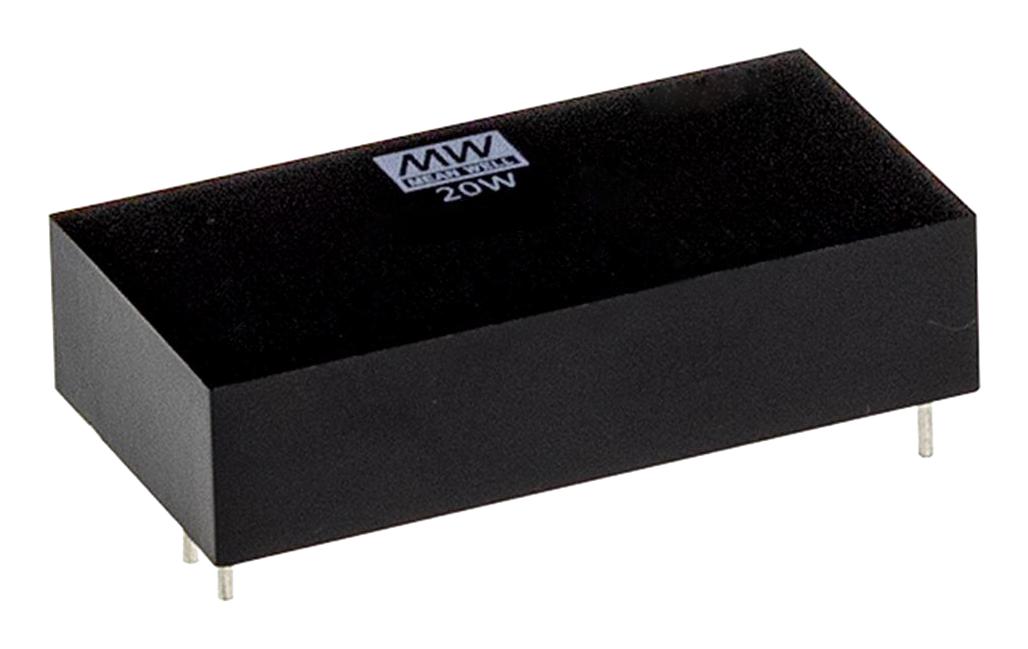

MEAN WELL MDS20B15 Medical Power Module
The MDS20B-15 is a 20W medical-grade isolated DC-DC converter designed in a 2x1-inch package, suitable for medical equipment requiring high efficiency and safety compliance. It features wide input voltage ranging from 18 to 36V, with power regulation up to 15V/1.33A, and offers reinforced isolation of 4kVAC. Its operating temperature spans -40°C to +90°C, with protections against short circuits, overloads, and under-voltage lockout. Certified to IEC60601-1 standards, it is ideal for medical systems needing ultra-low leakage current, high reliability, and environmental durability.
MEAN WELL MDS20B15 Medical Power Module Specifications:
- Rated Power: 20W
- Input Voltage Range: 18~36Vdc (B range)
- Output Voltage: 15V/1.33A
- Efficiency: up to 88-89%
- Isolation Voltage: 4KVAC (reinforced)
- Operating Temperature: -40°C to +90°C
- Ripple & Noise: 60mVp-p
- Line Regulation: 0.5%
- Load Regulation: +0.5%
- Short Circuit Protection: Continuous, automatic recovery
- Overload Protection: 110~180% rated output power
- Under Voltage Lockout: 15Vdc
- Case Dimensions: 50.8mm x 25.4mm x 12mm
- Pin Configuration: +Vin, -Vin, +Vout, No Pin, -Vout
- Mechanical Material: UL94V-0 plastic case
- Vibration Resistance: 10~500Hz, 2G
- Compliance: IEC60601-1, UL, CSA
- Soldering Temp: Max. 260°C for 1-3 sec.
- Humidity: 20-90% RH non-condensing
Buy the Mean Well Series MDS 20W Medical Grade DC-DC Converter: MDS20B-15
Purchase the high-efficiency MDS20B-15 medical-grade DC-DC converter online today. It offers robust protection, reinforced isolation, and compliance with IEC60601-1 standards. With wide input voltage range from 18 to 36V and output of 15V at 1.33A, it is perfect for medical systems requiring ultra-low leakage current, high reliability, and durable operation in harsh environments. Enjoy fast delivery, excellent quality, and technical support—making your medical device development seamless and reliable.
Buy Mean Well MDS20B-15 now and experience unmatched reliability and performance with certified medical safety standards.
Frequently Asked Questions
Where can I buy MEAN WELL MDS20B15?
You can click on the BUY or RFQ button to purchase MDS20B15 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS20B15?
You can download the MDS20B15 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS20B15?
MEAN WELL
