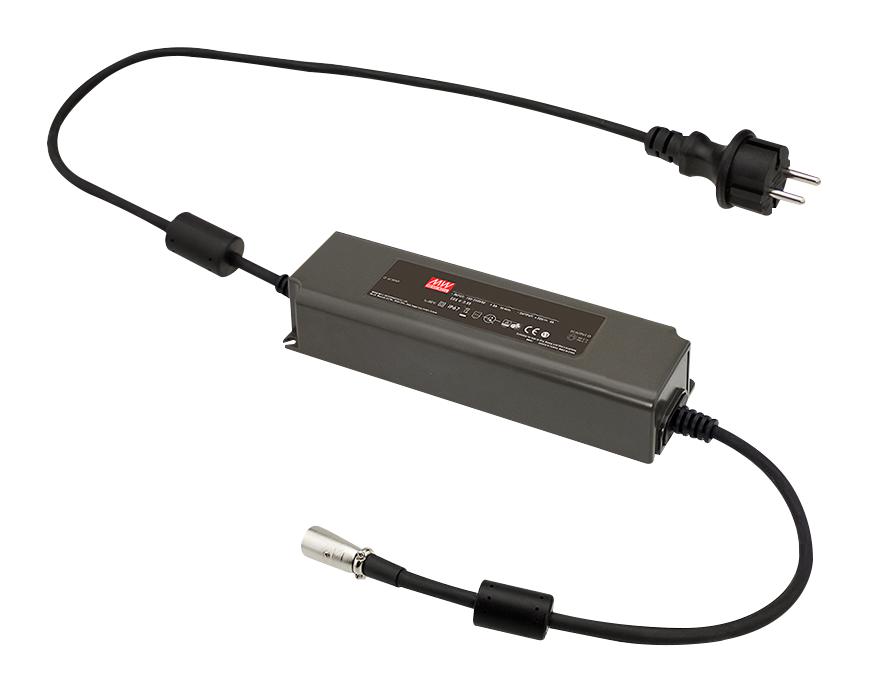

MEAN WELL OWA120E24 Moistureproof Power Supply
The OWA-120E series is a 120W moistureproof AC/DC power supply designed for outdoor and humid environments. Fully-potted silicone enhances heat dissipation and IP67 level protection against dust, humidity, and damp conditions. It features universal input voltage from 90VAC to 264VAC, high efficiency up to 91%, and built-in active PFC. Suitable for household appliances, robotic lawn mowers, and battery charging, it supports EN60335 standards, operates from -40°C to +70°C, and consumes less than 0.15W at no load, ensuring energy efficiency and reliable operation.
MEAN WELL OWA120E24 Moistureproof Power Supply Specifications:
- Output Voltage: 24V
- Rated Power: 120W
- Rated Current: 5A
- Ripple & Noise: 150mVp-p
- Voltage Tolerance: +4.0%
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Input Voltage Range: 90 ~ 264VAC
- Frequency Range: 47 ~ 63Hz
- Efficiency: 90.5%
- Protection: Short circuit, Over current, Over voltage, Over temperature
- Working Temperature: -40°C to +70°C
- Enclosure: Plastic, fully-potted silicone, IP67 rated
- Dimensions: 191 x 63 x 37.5 mm
- Working Humidity: 20% to 95% RH non-condensing
- Storage Temperature: -40°C to +80°C
- Safety Standards: EN61558-1, EN61558-2-16, EN60335-1
- Safety & Withstand Voltage: 3.75KVAC (I/P-O/P)
- MTBF: 294,300 hours
- Vibration Resistance: 10-500Hz, 5G
- Weight: Approx. 1.15 kg
Buy the Buy MW Moistureproof Switching Adaptor Part Number OWA120E24 Online
Order the MW moistureproof power supply online today and ensure reliable, efficient power for outdoor, humid, or dusty environments. The OWA120E series delivers up to 120W of stable output with high efficiency exceeding 90%, IP67 protection, and universal input voltage from 90V to 264VAC. Its robust design includes built-in protections like short circuit, over current, and over voltage, making it suitable for household appliances, robotic lawn mowers, and battery chargers. Enjoy easy installation, low no-load power consumption, and a 5-year warranty. Shop now for long-lasting, dependable power solutions with fast delivery.
Get MW OWA120E24 today—built for outdoor durability and energy efficiency, perfect for humid environments and industrial applications.
Frequently Asked Questions
Where can I buy MEAN WELL OWA120E24?
You can click on the BUY or RFQ button to purchase OWA120E24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part OWA120E24?
You can download the OWA120E24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of OWA120E24?
MEAN WELL
