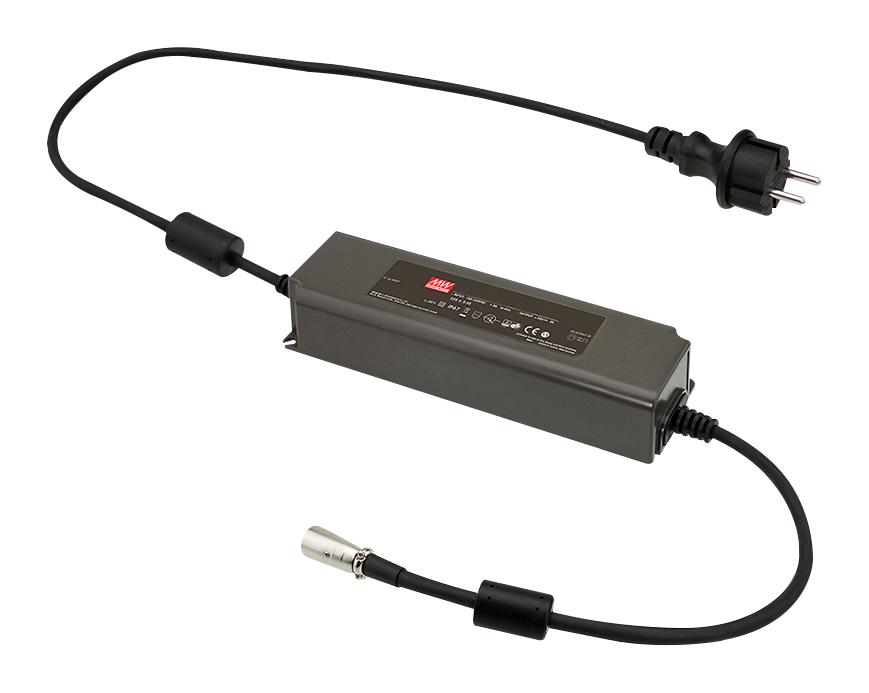

MEAN WELL OWA120E48 Moistureproof Power Supply
The OWA-120E is a 120W moistureproof external power supply designed for humid and dusty environments, rated IP67. Fully potted silicone enhances heat dissipation, ensuring reliable operation in outdoor or industrial settings. It features universal input voltage (90-264VAC), high efficiency up to 91%, and low no-load power consumption below 0.15W, meeting energy-saving standards. Suitable for household appliances, battery charging, and robotic lawn mowers, this class II power supply incorporates active PFC, overcurrent, overvoltage, over temperature protections, and operates continuously from -40°C to +70°C. Its compact, fanless design with IP44 option makes it versatile and durable.
MEAN WELL OWA120E48 Moistureproof Power Supply Specifications:
- Power Rating: 120W
- Input Voltage: 90-264VAC
- Output Voltages: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
- Rated Currents: 4.1A (12V), 8A (15V), 6A (20V), 5A (24V), 4A (30V), 3.4A (36V), 2.9A (42V), 2.5A (48V), 2.3A (54V)
- Efficiency: Up to 91%
- Ripple & Noise: Max 150mVp-p (varies by model)
- Voltage Tolerance: ±4.0% to ±1.0% (depending on model)
- Line Regulation: ±0.5%
- Load Regulation: 0.5% to 2.0%
- Working Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +80°C
- Humidity: 20-95% RH non-condensing
- Safety Standards: EN61558, EN60335, IP67 certified
- Dimensions: 191 x 63 x 37.5 mm
- MTBF: 294,300 hours
Buy the Mean Well Series Moistureproof Power Supply: OWA-120E-48
Get the high-quality moistureproof power supply from the trusted series designed for humid, dusty environments. The OWA-120E-48 offers 120W power, IP67 protection, and high efficiency up to 91%. Its robust construction ensures durability in outdoor or industrial applications like household appliances, robotic lawnmowers, and battery chargers. Features include universal input voltage, active PFC, low no-load power consumption, and protection against short circuit, overcurrent, overvoltage, and over temperature. Order online today and secure dependable power solution for demanding conditions.
Order your Mean Well Series moistureproof power supply OWA-120E-48 today and ensure reliable, dust and humidity resistant power for your outdoor or industrial projects.
Frequently Asked Questions
Where can I buy MEAN WELL OWA120E48?
You can click on the BUY or RFQ button to purchase OWA120E48 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part OWA120E48?
You can download the OWA120E48 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of OWA120E48?
MEAN WELL
