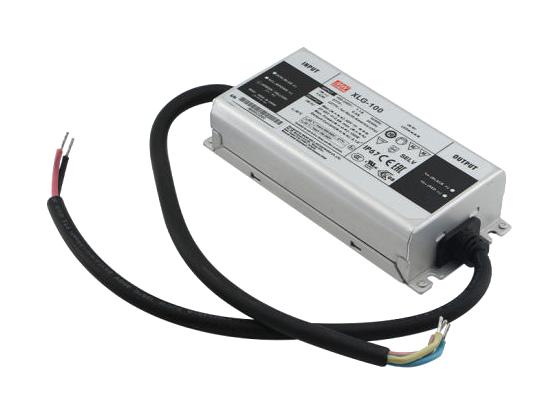

MEAN WELL XLG10024A LED Driver
The XLG-100 series is a high-efficiency 100W LED driver designed for indoor and outdoor use with IP67 protection. It operates from 100 to 305VAC with models featuring adjustable current between 700mA and 8000mA. Suitable for applications like street, floodlight, and building lighting, it supports constant power mode, has surge protection up to 6KV/4KV, and includes multiple dimming options. Its rugged metal housing ensures durability with a lifetime exceeding 50,000 hours, providing safe, reliable LED lighting solutions in diverse environmental conditions.
MEAN WELL XLG10024A LED Driver Specifications:
- Input Voltage Range: 100~305VAC
- Output Power: 100W
- Rated Current: 700mA to 8000mA (adjustable)
- Output Voltage: 12V/24V (constant current region)
- Ripple & Noise (max): 150mVp-p to 240mVp-p
- Efficiency: Up to 92%
- Power Factor: 0.97 / 115VAC, 0.95 / 230VAC, 0.92 / 277VAC
- Total Harmonic Distortion: <10%
- Operating Temperature: -40°C to +90°C
- Ingress Protection: IP67
- Lifespan: Over 50,000 hours
- Surge Protection: 6KV/4KV (optional 10KV/6KV)
- Dimming Modes: 0-10V, PWM, Resistance
- Certifications: IEC 61347, UL 8750, ENEC, UL, CSA, EAC
- Dimensions: 140 x 63 x 32 mm
- Attenuation: Output current adjustable via built-in potentiometer
- Protection: OVP, SCP, OCP, OTP, Input Over Voltage
- Compliance: RoHS, ErP, and other safety standards
Buy the MEAN WELL Series XLG 100W LED Driver: XLG10024A
Enhance your lighting project with the MEAN WELL XLG 100W LED driver. Featuring IP67 protection, adjustable current from 700mA to 8000mA, surge protection, and multiple dimming options, this durable driver is ideal for outdoor and indoor applications. Its high efficiency of up to 92% reduces energy use while ensuring bright, reliable lighting. With a lifespan of over 50,000 hours and comprehensive safety features including OVP, SCP, and OTP, order online now for a dependable, long-lasting lighting solution tailored to your needs.
Get MEAN WELL XLG 100W LED Driver today—built for outdoor durability and high-efficiency illumination.
Frequently Asked Questions
Where can I buy MEAN WELL XLG10024A?
You can click on the BUY or RFQ button to purchase XLG10024A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part XLG10024A?
You can download the XLG10024A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of XLG10024A?
MEAN WELL
