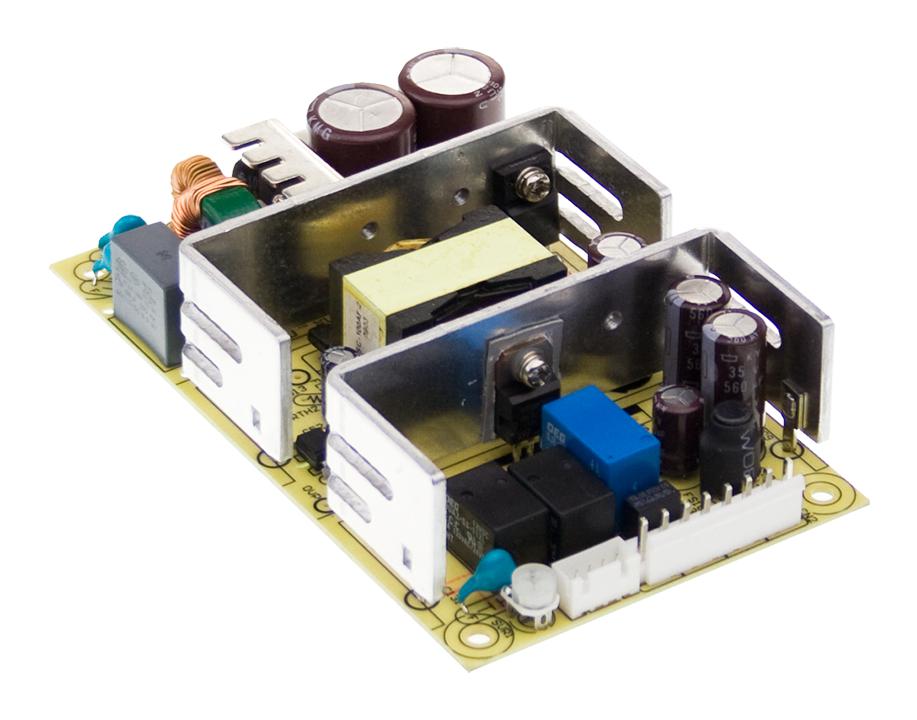

MEAN WELL PSC100A Power Supply Module
The 100W single output UPS power supply with battery charger features universal AC input, compact 5x3-inch design, and protections against short circuit, overload, and over voltage. It provides relays for AC OK and Battery Low signals, includes low battery and reverse polarity protections, and supports cooling by free air convection. Suitable for backup and industrial applications, it undergoes full load burn-in testing, offers a 2-year warranty, and complies with UL62368-1 safety standards. Its robust design ensures reliable power delivery for critical systems.
MEAN WELL PSC100A Power Supply Module Specifications:
- Input Voltage: 90~264VAC or 127~370VDC
- Output Voltage: 13.8V or 27.6V depending on model
- Rated Power: 100W
- Output Current: 0-7A
- Ripple & Noise: Max 100mVp-p
- Efficiency: 86-88%
- Protection: Short circuit, Overload, Over voltage, Battery low, Reverse polarity
- Alarm Output: Relay contact for AC OK and Battery Low signals, max 30V/1A
- Working Temperature: -20°C to +70°C, with derating
- Humidity: 20-90% RH non-condensing
- Dimensions: PCB – 127×76.2×31mm; Enclosed – 130×85×37mm
- Safety: UL62368-1, TUV EN62368-1, EAC TP TC 004
- Compliance: EN55032, EN61000-3-2,-3, EN61000-4
- MTBF: 417,600 hours (MIL-HDBK-217F)
Buy the Generic 100W – Reliable Power Supply for Industrial Applications
Secure this high-quality 100W power supply module online today and ensure dependable backup power for your industrial and automation systems. With full protections, relay signals for AC status, and a robust design, it guarantees continuous operation even during power interruptions. Easy to install and maintain, this power supply enhances your system reliability, reduces downtime, and provides peace of mind with a 2-year warranty. Upgrade your setup now for unmatched performance and durability.
Buy the 100W UPS power supply now from us and experience reliable battery backup, comprehensive protections, and efficient power delivery for your industrial needs.
