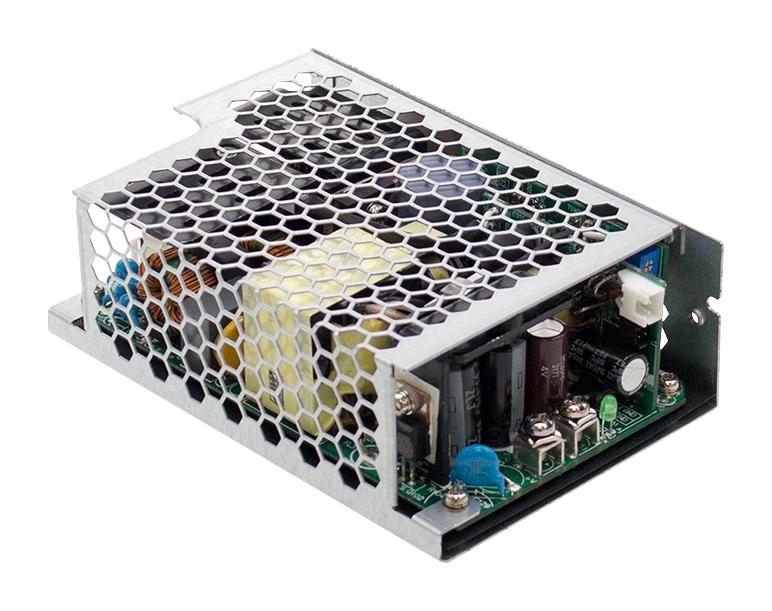

MEAN WELL RPS30024C Medical Power Supply
The RPS-300 series is a reliable 300W medical power supply with a compact 5x3 inch footprint, suitable for BF applications and wide input voltage range. It features high efficiency up to 93%, extremely low no load power consumption below 0.5W, and low leakage current under 150 HA. Conforms to international safety standards such as ANSI/AAMI ES60601-1, IEC60601-1 (2*MOPP), with multiple protections including overvoltage, overcurrent, and overtemperature. It provides various voltages from 12V to 48V, making it ideal for medical devices like hemodialysis, sleep apnea machines, and medical monitors, with a typical lifetime exceeding 40,000 hours and a 3-year warranty.
MEAN WELL RPS30024C Medical Power Supply Specifications:
- Input Voltage Range: 90~264VAC, 47~63Hz
- Output Voltages: 12V, 15V, 24V, 27V, 48V
- Rated Power: 300W
- Efficiency: Up to 93%
- No Load Power Consumption: <0.5W
- Leakage Current: <150A
- Protections: Short circuit, Overload, Overvoltage, Over temperature
- Ripple & Noise: 120-250mVp-p depending on model
- Line Regulation: ±0.5%
- Load Regulation: ±1.0%
- Dimension (PCB type): 127×76.2×35mm; Enclosed type: 130×86×43mm
- Safety Standards: IEC60601-1, ANSI/AAMI ES60601-1, UL, CSA
- Isolation: 2×MOPP (primary-secondary), 1×MOPP (primary-earth, secondary-earth)
- Working Temperature: -30°C to +70°C
- Humidity: 20-90% RH non-condensing
- Temperature Coefficient: +0.03%/°C (0-50°C)
Buy the Buy Mean Well RPS-300 Series Medical Power Supply Part Number RPS30024C Online
Purchase the reliable and efficient 300W medical power supply from Mean Well online today. Designed for healthcare devices, it offers wide input voltage, low noise, and high safety standards. With a compact size, high efficiency up to 93%, and superior protections including overvoltage and overtemperature safeguards, this power supply ensures consistent performance and long lifespan for vital medical equipment. Ideal for hemodialysis, sleep apnea, and medical monitors, order now for quick delivery and trusted quality.
Order your Mean Well RPS-300 series 300W medical power supply today and ensure dependable performance for critical healthcare applications.
Frequently Asked Questions
Where can I buy MEAN WELL RPS30024C?
You can click on the BUY or RFQ button to purchase RPS30024C from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS30024C?
You can download the RPS30024C datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS30024C?
MEAN WELL
