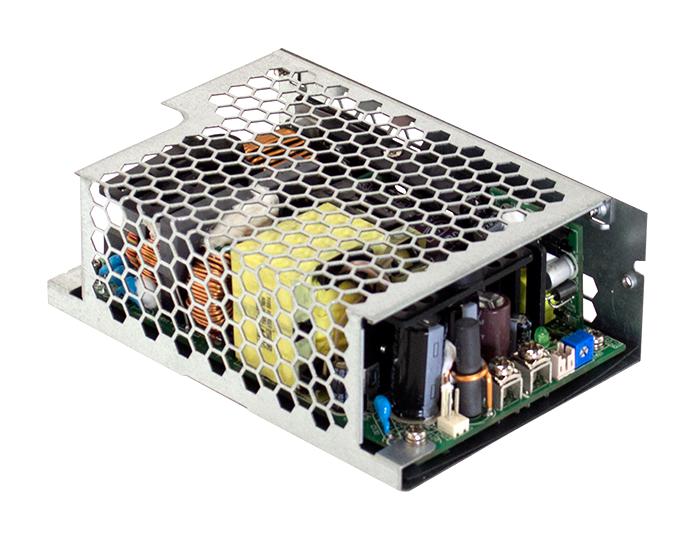

MEAN WELL RPS40015C Medical Power Supply
The RPS-400 series is a compact, reliable 400W medical power supply designed for BF-rated patient contact systems, including medical beds, hemodialysis machines, and sleep apnea devices. It features high efficiency up to 94%, very low no-load power consumption below 0.5W, and conforms to international medical safety standards (2xMOPP). Suitable for both Class I with FG and Class II without FG configurations, it offers various output voltages from 12V to 48V, low ripple noise, and multiple protection features. Enclosed styles with fan options enhance cooling, and the power supply operates reliably at altitudes up to 4000 meters, ensuring long-term durability for various healthcare applications.
MEAN WELL RPS40015C Medical Power Supply Specifications:
- Model: RPS-400-12, RPS-400-15, RPS-400-18, RPS-400-24, RPS-400-27, RPS-400-36, RPS-400-48
- Input Voltage: 80-264VAC, 113-370VDC, 47-63Hz
- Output Voltages: 12V, 15V, 18V, 24V, 27V, 36V, 48V
- Rated Power: Up to 400W with convection cooling, 400W with forced air cooling
- Efficiency: Up to 94%
- Ripple & Noise: Max 200mVp-p depending on model
- Line Regulation: ±0.5%, Load Regulation: ±1.0%
- Protection Features: Short circuit, Overload, Over voltage, Over temperature
- Standby Output: 5V@0.6-1A, Fan Supply: 12V@0.5A
- Operating Altitude: Up to 4000 meters
- Operating Temperature: -30°C to +70°C
- Environmental Humidity: 20% to 90% RH non-condensing
- Isolation Level: 2xMOPP primary-secondary, 1xMOPP primary-earth
- Safety Certification: UL, ANSI/AAMI ES60601-1, IEC60601-1, CSA
- EMC Compliance: EN55011 Class B, Class A for Class II systems
- MTBF: 194,100 hours (MIL-HDBK-217F at 25°C)
- Physical Dimensions: PCB Type approx. 127x76.2x35mm, Enclosed Types vary from 130x86x43mm to 160x86x66.5mm
- Weight: From 0.39kg to 0.64kg depending on model
Buy the Mean Well RPS-400 Reliable Medical Power Supply for Industrial Applications
Order the Mean Well RPS-400 series online today and experience a highly reliable, efficient, and safety-certified power supply perfect for medical devices such as BF-rated systems, hemodialysis, and sleep apnea equipment. With various output voltages and enclosed styles available, this power supply offers flexible installation options, low noise, and advanced protection features ensuring long-lasting operational stability in healthcare environments. Enhance your medical device performance with our trusted power solutions—buy now for quick delivery and guaranteed quality.
Get Mean Well RPS-400 today—built for medical-grade reliability and high efficiency in healthcare and industrial applications.
