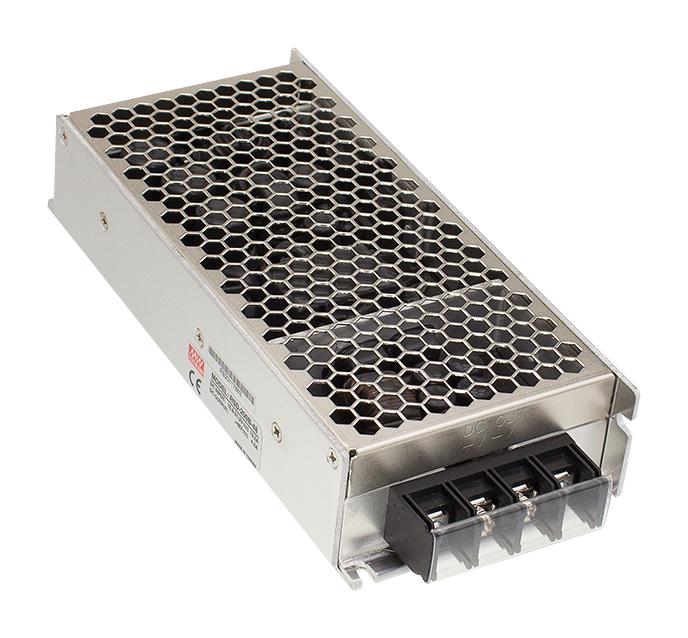

MEAN WELL RSD200D48 Railway Power Converter
The RSD-200 series is a compact, 200W railway-grade DC-DC converter designed for high reliability in harsh environments. Compliant with EN50155 and EN45545-2 standards, it features a wide input range of 16.8 to 143VDC and provides stable output voltages with protections against short circuits, overloads, overvoltage, and temperature. Built-in protections include automatic recovery from faults, and it supports multiple mounting options for optimal thermal management. Suitable for railway, industrial, and transportation applications, it incorporates long-life electrolytic capacitors and safety features for reliable operation in demanding conditions.
MEAN WELL RSD200D48 Railway Power Converter Specifications:
- Power Output: 200W with 16.8-143V DC input range
- Output Voltages: 12V, 24V, 48V (models RSD-200B, C, D series)
- Rated Current: 16.7A for 12V, 8.4A for 24V, 4.2A for 48V models
- Efficiency: Up to 91% at full load
- Isolation Voltage: 4000VDC input-to-output
- Protections: Short circuit, overload (105-135%), overvoltage, overtemperature
- Dimensions: 191 x 86 x 40 mm
- Operating Temp: -40°C to +70°C (no derating with external plate)
- Humidity: 5-95% RH, non-condensing
- Safety Standards: IEC60950-1, EN50155 / IEC60571, EN45545-2 (fire resistance)
- Vibration/Shock: IEC61373 compliant with 5G/10-500Hz tests
- MTBF: 218,200 hours
Buy the Mean Well Series 200W Railway Converter: RSD200D48
Purchase the reliable railway power converter RSD200D48 online today. Designed for extreme environments, it provides 200W power with high efficiency, robust protections, and compliance with strict safety standards. Perfect for transportation and industrial applications, ensuring continuous operation under harsh conditions. Easy to install with multiple mounting options and long-lasting electrolytic capacitors, this unit guarantees durability and safety in your critical projects. Secure your supply for demanding environments now with fast online ordering.
Order your Mean Well Series 200W railway converter RSD200D48 today and ensure reliable, safe operation in demanding transportation environments.
Frequently Asked Questions
Where can I buy MEAN WELL RSD200D48?
You can click on the BUY or RFQ button to purchase RSD200D48 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSD200D48?
You can download the RSD200D48 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSD200D48?
MEAN WELL
