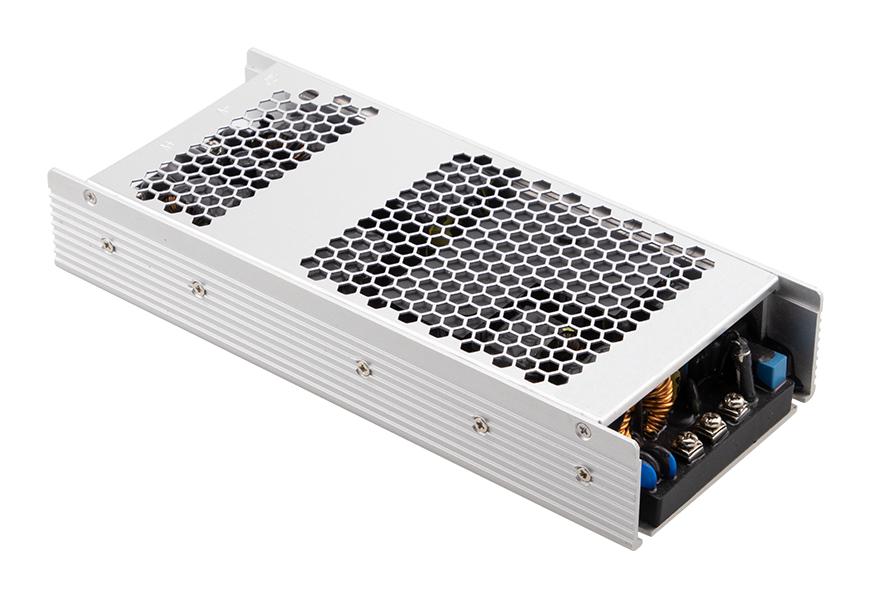

MEAN WELL RSD500C24 railway power supply
The RSD-500C-24 is a 500W enclosed railway DC-DC converter compliant with EN50155 and EN45545-2 standards. It features a wide input range of 33.6~67.2V, low ripple, noise, and superb EMC characteristics. Designed for harsh environments, it operates from -40°C to +80°C with high vibration and dust resistance. The unit has reinforced 4KVdc I/O isolation, adjustable output voltage, and protections against short circuit, overload, overvoltage, and overheating. Suitable for railway, industrial control, and automation applications in high-temperature, high-vibration conditions.
MEAN WELL RSD500C24 railway power supply Specifications:
- Power: 500W
- Input Voltage Range: 33.6~67.2Vdc
- Output Voltage: 24V
- Rated Current: 17.5A
- Ripple & Noise: 120mVp-p
- Voltage Tolerance: ±1.0%
- Line Regulation: ±5.0%
- Load Regulation: ±10.0%
- Efficiency: 92%
- Operating Temperature: -40°C to +80°C
- Isolation: 4KVdc reinforced
- Dimensions: 237mm x 100mm x 44mm
- Weight: 1.45kg
- Standards: UL62368-1, IEC 62368-1, EN50155, EN45545-2
- Vibration: IEC61373 compliance
- Storage Temp. & Humidity: -40°C to +85°C, 5-95% RH
- Altitude: Up to 5000 meters
- Protection: Short circuit, overload, overvoltage, overtemperature, reverse polarity
Buy the Buy MEAN WELL RSD-500C-24 Part Number RSD-500C-24 Online
Get the reliable MEAN WELL RSD-500C-24 railway DC-DC converter online today. Designed for harsh environments, it offers high efficiency, wide input range, and advanced protections. Perfect for railway, industrial control, and automation applications, this power module ensures continuous operation from -40°C to +80°C, resisting vibration and dust. Its compact design and reinforced isolation make installation easier and safe. Purchase now to enhance your systems with a durable, stable power solution that guarantees performance and safety in demanding conditions.
Order your MEAN WELL Series RSD-500C-24 today and give your railway and industrial systems reliable power with superior environmental resistance.
Frequently Asked Questions
Where can I buy MEAN WELL RSD500C24?
You can click on the BUY or RFQ button to purchase RSD500C24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSD500C24?
You can download the RSD500C24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSD500C24?
MEAN WELL
