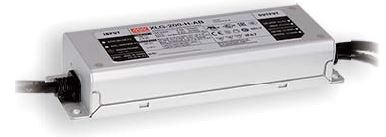

MEAN WELL XLG200LA 200W LED Driver
The MEAN WELL XLG-200-L-A series is a 200W LED AC/DC driver featuring constant power technology. Operating from 100-305VAC, these drivers offer models with different rated currents and boast high efficiency (up to 94%) with a fanless design. The IP67 ingress protection level allows for use in both indoor and outdoor environments. They are designed to meet international safety regulations and offer 3-in-1 dimming functionality. The XLG-200 series is suitable for a wide range of applications including street lighting, flood lighting, horticulture lighting, and more.
MEAN WELL XLG200LA 200W LED Driver Specifications:
- Output Power: 200W
- Input Voltage Range: 100~305VAC
- Frequency Range: 47~63Hz
- Power Factor: 0.95 (230VAC)
- Efficiency: Up to 94%
- Surge Protection: 6K V/4K V (10K V/6K V option)
- Dimming Function: 3-in-1 dimming (0~10Vdc, PWM, Resistance)
- IP Rating: IP67
- Working Temperature: -40 ~ +90℃
- Working Humidity: 20 ~ 95% RH non-condensing
- Storage Temperature & Humidity: -40 ~ +85℃, 10 ~ 95% RH
- Lifetime: >50,000 hours
- Dimension: 35.5mm (L*W*H)
- Weight: 0.85Kg
- Safety Standards: UL8750, ENEC EN61347-1, EN61347-2-13, CSA C22.2 No. 250.13-12, GB19510.1, EAC TP TC 004
- Over Temperature Protection: Shut down output voltage, recovers automatically
- Over Voltage Protection: Shut down output voltage, re-power on to recover
- Short Circuit Protection: Hiccup mode, recovers automatically
- Isolation Resistance: 100M Ohms / 500VDC / 25℃ / 70% RH
- Withstand Voltage: 4.2KVAC (I/P-O/P), 2.1KVAC (I/P-FG), 1.5KVAC (O/P-FG)
Buy the XLG-200-L-A MEAN WELL 200W LED Driver | myMectronic
Purchase the MEAN WELL XLG-200-L-A LED driver securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL XLG200LA?
You can click on the BUY or RFQ button to purchase XLG200LA from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part XLG200LA?
You can download the XLG200LA datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of XLG200LA?
MEAN WELL
