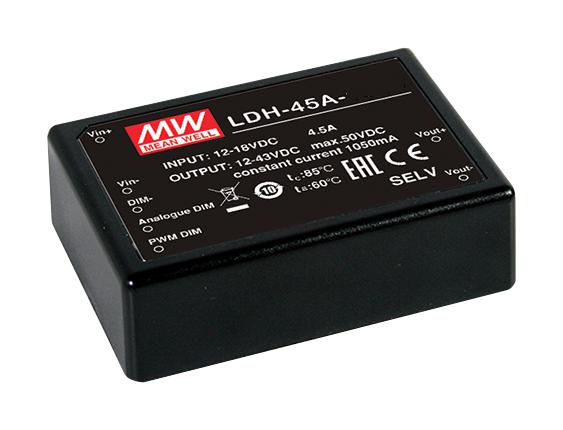

MEAN WELL LDH45A500DA LED Driver
The MEAN WELL LDH-45 series is a robust DC-DC step-up current driver designed for LED lighting applications. Featuring wide input ranges of 12-86VDC and 24-86VDC, it delivers constant current output adjustable from 350mA to 1050mA with high efficiency up to 95%. It supports PWM and analog dimming, remote ON/OFF control, and complies with EMI standards EN55015. Fully encapsulated and cooled by free air convection, this reliable power supply is ideal for commercial or industrial LED installations, rated for durable operation with an 8-year warranty.
MEAN WELL LDH45A500DA LED Driver Specifications:
- Input Voltage Range: 12-86VDC or 24-86VDC
- Output Current: 350mA to 1050mA, with 5% accuracy
- Output Voltage Max: 100V to 146V, depending on model
- Rated Power: 30.1W to 45.15W
- Efficiency: Up to 95%
- Ripple & Noise: Max 2.5Vp-p
- Protection: Short circuit, Over voltage, Under voltage
- Working Temperature: -40°C to +70°C
- Humidity: 20-90% RH non-condensing
- Dimming: PWM (1K-10KHz), Analog (0.25-1.3VDC), DALI (for DA type)
- Standards: EN55015 EMI, EN61547 EMC immunity
- Enclosure: Fully encapsulated, air-cooled
- Certifications: CE, EAC TP TC 004
- Dimensions: 53mm x 22.7mm, detailed pin configuration provided
- MTBF: 1179.3K hours according to MIL-HDBK-217F
- Warranty: 8 years
Buy the Buy MEAN WELL LED Driver Part Number LDH45A500DA Online
Enhance your lighting setup by purchasing the MEAN WELL LDH-45 series LED driver online. This high-efficiency, constant current power supply supports PWM and DALI dimming, ensuring optimal performance and energy savings. Its robust design, wide input voltage range, and extensive protections make it suitable for industrial applications. With an encapsulated form and cold air convection cooling, it guarantees longevity and stable operation. Order now to modernize your lighting systems with a dependable, professional-grade LED driver that comes with an 8-year warranty, ensuring peace of mind.
Order your MEAN WELL LDH-45 series LED driver today and ensure reliable, high-efficiency lighting for your industrial or commercial projects.
Frequently Asked Questions
Where can I buy MEAN WELL LDH45A500DA?
You can click on the BUY or RFQ button to purchase LDH45A500DA from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LDH45A500DA?
You can download the LDH45A500DA datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LDH45A500DA?
MEAN WELL
