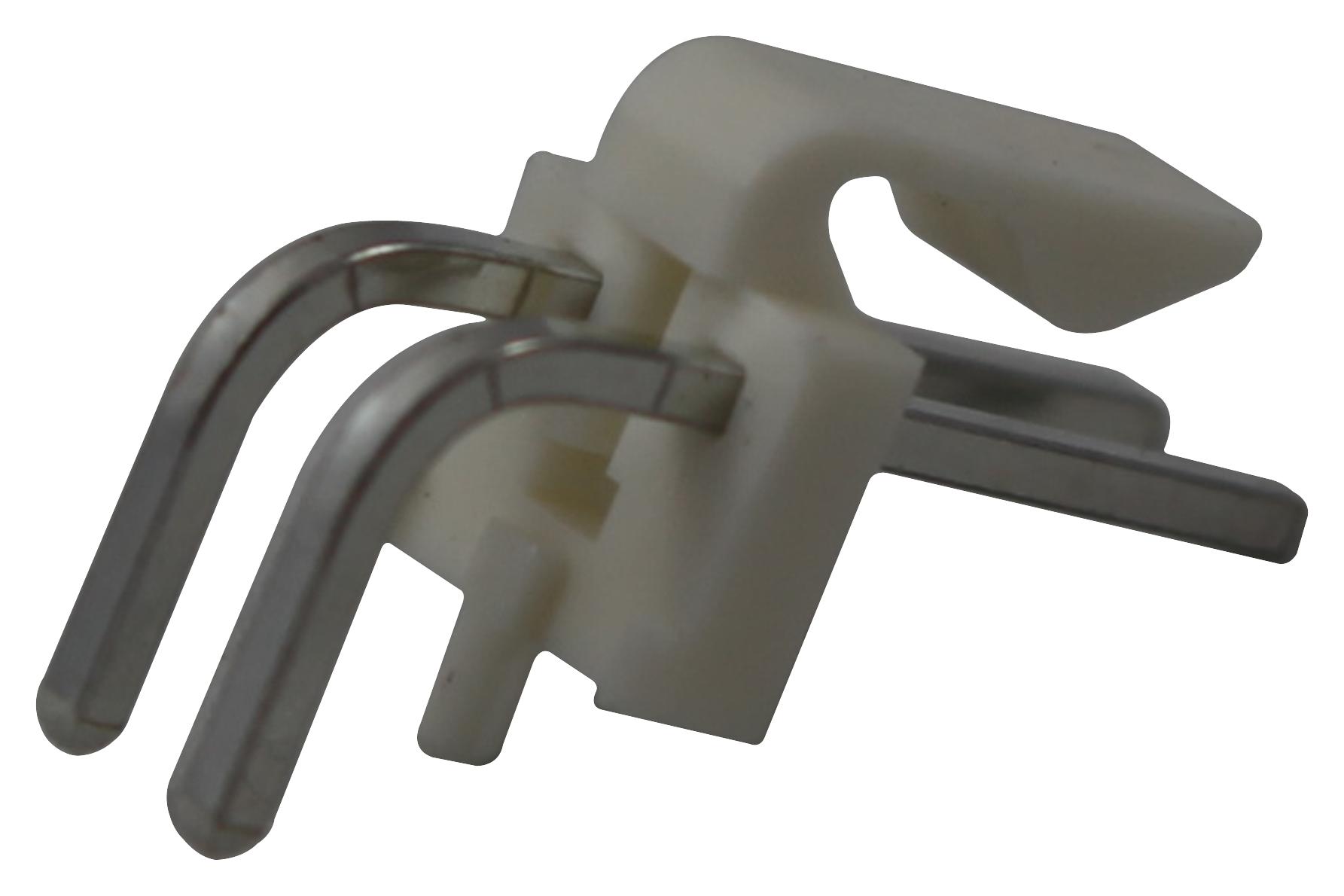

MOLEX 26645020 KK 396 Header
The MOLEX 26-64-5020 is a KK 396 header within the 42492 series, designed for robust wire-to-board connectivity. This right-angle header utilizes a friction lock and press-fit plastic peg PCB design, ensuring secure connections. It features tin plating for enhanced solderability and is suitable for applications requiring a maximum current of 7.0A and a maximum voltage of 250V. The header is polarized to both the mating part and the PCB, offering added design security. It is RoHS compliant and has a maximum of 25 mating cycles.
MOLEX 26645020 KK 396 Header Specifications:
- overview: KK Interconnect System
- description: KK 396 Header, Right-Angle, Friction Lock with Press-fit Plastic Peg PCB
- circuits_loaded: 2
- circuits_maximum: 2
- durability_mating_cycles: 25
- flammability: 94V-0
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- number_of_rows: 1
- orientation: Right Angle
- pc_tail_length: 3.96mm
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- packaging_type: Bag
- pitch_mating_interface: 3.96mm
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Partial
- stackable: Yes
- temperature_range_operating: See Product Specification
- termination_interface_style: Through Hole
- current_max_per_contact: 7.0A
- voltage_max: 250V
- duration_at_max_process_temperature_seconds: 005
- lead_free_process_capability_wave_max_cycles: 001
- process_temperature_max_c: 235
- engineering_number: 42492-0002
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- rohs_phthalates: Not Contained
