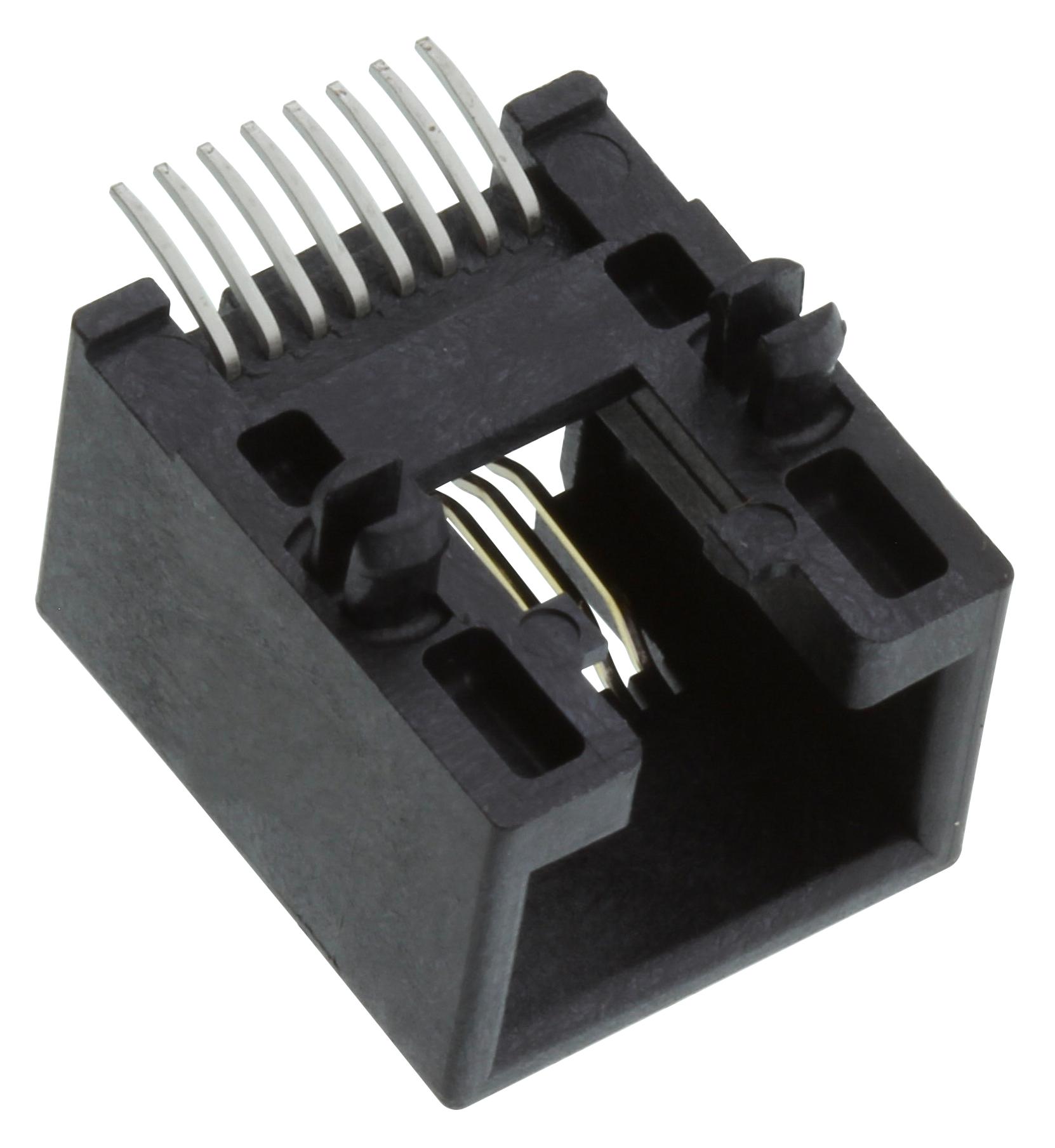

MOLEX 955016889 Ethernet Modular Jack
This modular jack is a right-angle, surface-mount, 8/8 port, low-profile component designed for high-performance Ethernet applications. It features magnetic and modular jack capabilities, making it suitable for Power over Ethernet (PoE) systems. Crafted from durable high-temperature thermoplastic with gold over palladium nickel plating, it supports up to 1.5A current per contact and a maximum voltage of 125V DC. Its compact design includes a 1.57mm pitch interface, 11.50mm jack height, and a lifetime of up to 2,500 mating cycles, ensuring reliable, long-term connectivity in network infrastructure.
MOLEX 955016889 Ethernet Modular Jack Specifications:
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Port Configuration: 8/8
- Jack Height: 11.50mm
- Material - Metal: Copper Alloy
- Plating - Mating: Gold over Palladium Nickel
- Plating - Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Color - Resin: Black
- Durability (Mating Cycles): 2,500
- Voltage - Max: 125V DC
- Current - Max per Contact: 1.5A
- Temperature Range - Operating: -40°C to +85°C
- Pitch - Mating Interface: 1.57mm
- Reflow Capability: Yes, lead-free, max process temp 260°C, max cycles 3, process time 45 seconds
- Certifications: UL, RoHS Compliant, China RoHS Green
- Waterproof / Dustproof: No
- Surface Mount Compatible: Yes
Buy the Buy Molex Modular Jack Part Number 955016889 Online
Secure your Ethernet infrastructure with the reliable Molex Ethernet Modular Jack designed for high-performance PoE applications. This 8/8 port, right-angle surface-mount component features durable materials, gold-plated contacts, and a compact 11.50mm height ideal for tight spaces. With a high mating cycle count of 2,500 and operating temperatures from -40°C to +85°C, it ensures long-lasting, stable network connections. Buy online now to streamline your assembly process and improve your network reliability with a trusted industrial-grade connector.
Order your Molex Series955016889 modular jack today and enhance your Ethernet connectivity with reliable, high-performance network components.
Frequently Asked Questions
Where can I buy MOLEX 955016889?
You can click on the BUY or RFQ button to purchase 955016889 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 955016889?
You can download the 955016889 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 955016889?
MOLEX
