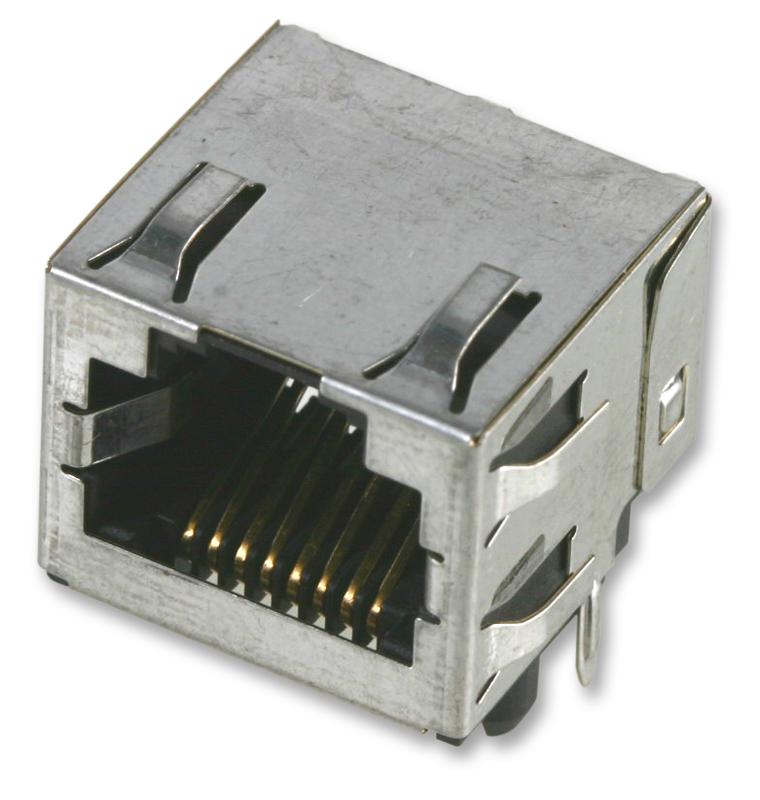

MOLEX 0446200002 Modular Jack RJ45 8/8
The MOLEX 0446200002 is a robust modular jack designed for a variety of networking and data communication applications. Its right-angle configuration and low-profile design make it suitable for space-constrained environments. The jack offers a secure connection with an inverted top latch and is constructed with high-quality materials including brass, phosphor bronze, and a gold-plated mating interface. It is RoHS compliant and supports power over ethernet (PoE) functionality, making it a versatile choice for industrial and commercial applications.
MOLEX 0446200002 Modular Jack RJ45 8/8 Specifications:
- series: 44620
- product_family: Modular Jacks/Plugs
- comments: RJ-11 Keepout Feature
- component_type: PCB Jack
- overview: Magnetic and Modular Jacks and Plugs
- performance_category: Power over Ethernet (PoE)
- upc: 800753265431
- boot_color: N/A
- color_resin: Black
- durability_mating_cycles: 500
- flammability: 94V-0
- inverted_top_latch: Yes
- jack_height: 13.46mm
- lightpipes_leds: None
- material_metal: Brass, Phosphor Bronze
- material_plating_mating: Gold
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight_g: 3.913
- orientation: Right Angle (Side Entry)
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- packaging_type: Tray
- panel_mount: With Flange
- pitch_mating_interface: 1.02mm
- pitch_termination_interface: 1.02mm
- plating_min_mating: 1.270µm
- plating_min_termination: 2.540µm
- ports: 1
- positions_loaded_contacts: 8/8
- surface_mount_compatible: Yes
- temperature_range_operating: -40° to +85°C
- termination_interface_style: Through Hole
- waterproof_dustproof: No
- current_maximum_per_contact: 1.5A
- grounding_to_pcb: Yes
- grounding_to_panel: Yes
- shielded: Yes
- voltage_maximum: 150V AC (RMS)
- duration_at_max_process_temperature_seconds: 005
- lead_free_process_capability_wave: WAVE
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 260
