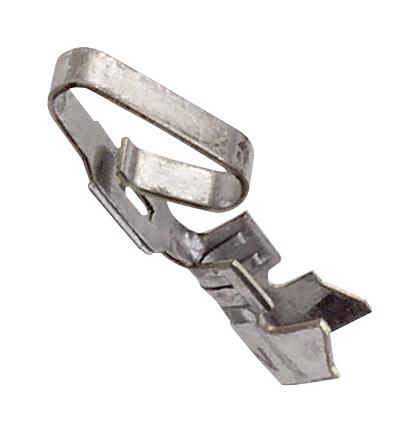

MOLEX 08500110 KK Crimp Terminal
The MOLEX 08-50-0110 KK Crimp Terminal is a component of the KK® Interconnect System, designed for reliable electrical connections. This terminal, part of the 2477 series, utilizes a humpback design and incorporates a tin-plated brass contact to ensure optimal conductivity and corrosion resistance. It is engineered to accommodate wire gauges ranging from 18 to 24 AWG, making it versatile for various applications. The terminal is RoHS compliant, reflecting MOLEX's commitment to environmental responsibility. It is currently an active part, indicating ongoing availability and support.
MOLEX 08500110 KK Crimp Terminal Specifications:
- Overview: KK® Interconnect System - Molex
- Description: KK Crimp Terminal, Series 2477, Humpback, with Tin (Sn) Plated Brass Contact, 18-24 AWG, Loose
- Application: Crimp Quality Equipment
- Durability (mating cycles max): 25
- Gender: Female
- Material - Metal: Brass
- Material - Plating: Tin
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 2.54-2.79mm
- Wire Size AWG: 18, 20, 22, 24
- Current - Maximum per Contact: 4.25A, 5.0A
- Voltage - Maximum: 250V
- Lead-freeProcess Capability: N/A
- Engineering Number: 2477-(P909)L
- Mates With: 2139 Crimp Housing
- Use With: 41696 Crimp Housings
- Hand Crimp Tool Product #: 638279500
Buy the 08-50-0110 MOLEX KK Crimp Terminal | myMectronic
Purchase the MOLEX 08-50-0110 KK Crimp Terminal securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 08500110?
You can click on the BUY or RFQ button to purchase 08500110 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 08500110?
You can download the 08500110 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 08500110?
MOLEX
