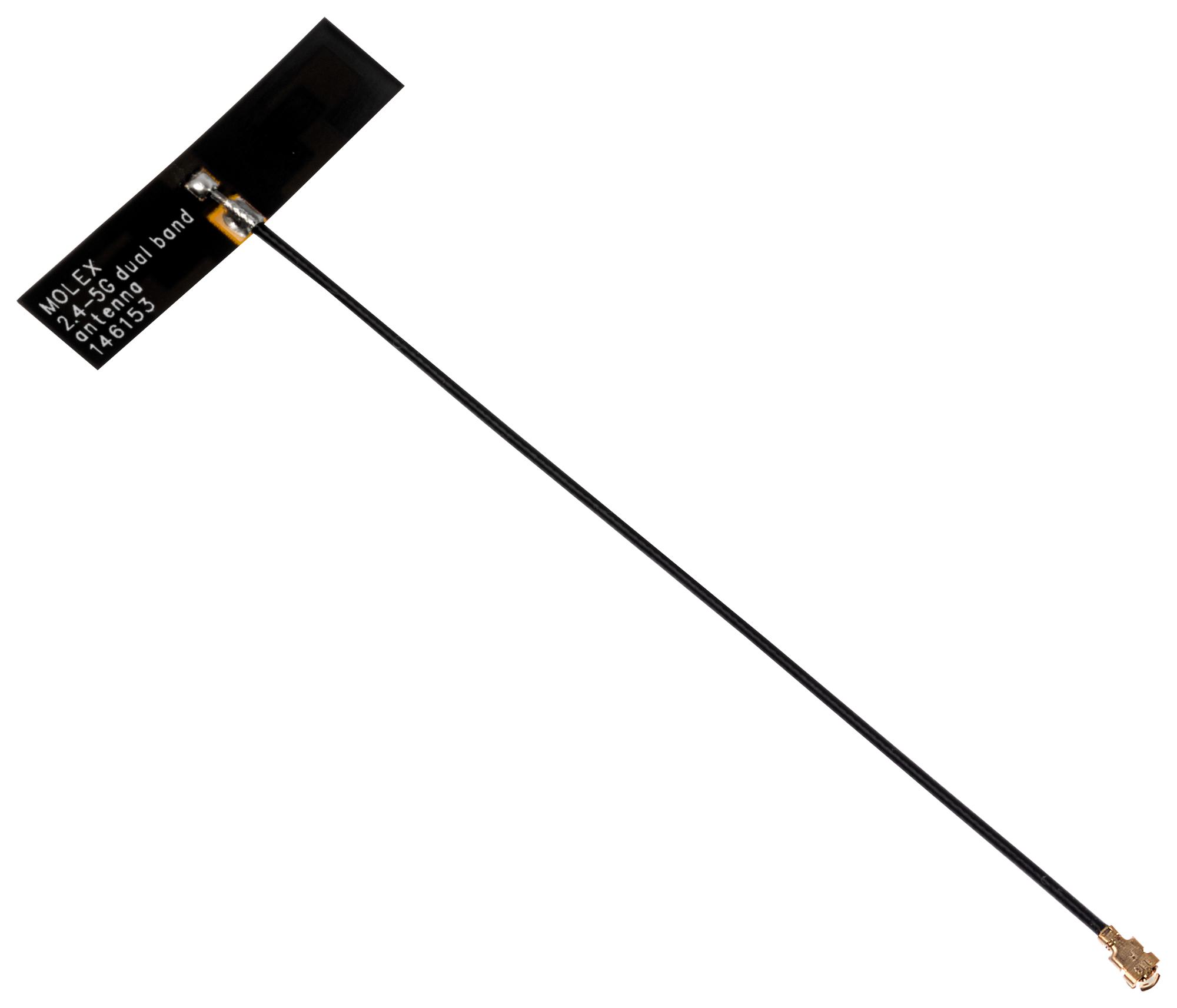

MOLEX 1461530300 Wi-Fi Antenna
This 2.4GHz / 5GHz Wi-Fi standalone balanced antenna features a 9.00mm width and a 300.00mm cable. Compatible with U.FL and |-PEX MHF connectors, it is ideal for IoT applications including Wi-Fi, Bluetooth, and Zigbee. The antenna offers omnidirectional radiation with peak gains of 2.2 dBi at 2.4 GHz and 2.8 dBi at 5 GHz, ensuring efficient signal transmission. Constructed with PET film and adhesive mounting, it provides reliable performance for compact wireless devices requiring flexible antenna solutions.
MOLEX 1461530300 Wi-Fi Antenna Specifications:
- Frequency Bands: 2.4 GHz and 5 GHz
- Peak Gain: 2.2 dBi at 2.4 GHz, 2.8 dBi at 5 GHz
- Cable Length: 300.00mm
- Width: 9.00mm
- Thickness: 0.10mm
- Material: PET film
- Mounting: Adhesive
- Radiation Pattern: Omnidirectional
- Connector Compatibility: U.FL, |-PEX MHF
- Dimensions: 34.90mm x 9.00mm
- RoHS Compliance: Yes, Low-Halogen
- Operational Frequency Range: 2400 - 2483.5 MHz and 4900 - 5930 MHz
- Mechanical: Flexible antenna with cable for versatile installation
- Application: IoT, Bluetooth, Zigbee, Wi-Fi modules
Buy the Molex Series 146153 Wi-Fi Antenna: 1461530300
Enhance your wireless devices with the Molex 1461530300 Wi-Fi antenna, designed for IoT, Bluetooth, and Zigbee applications. Its omnidirectional radiation pattern ensures consistent performance across 2.4 and 5GHz bands, offering peak gains of 2.2 dBi and 2.8 dBi respectively. The antenna's flexible design with a 300mm cable and adhesive mounting simplifies installation in tight spaces, making it ideal for compact, high-performance wireless modules. RoHS compliant and constructed with PET film, it ensures durability and eco-friendliness, delivering dependable connectivity for your IoT solutions.
Buy Molex 1461530300 Wi-Fi antenna now and experience reliable connectivity for your IoT, Bluetooth, and Zigbee wireless devices with compact design and high efficiency.
