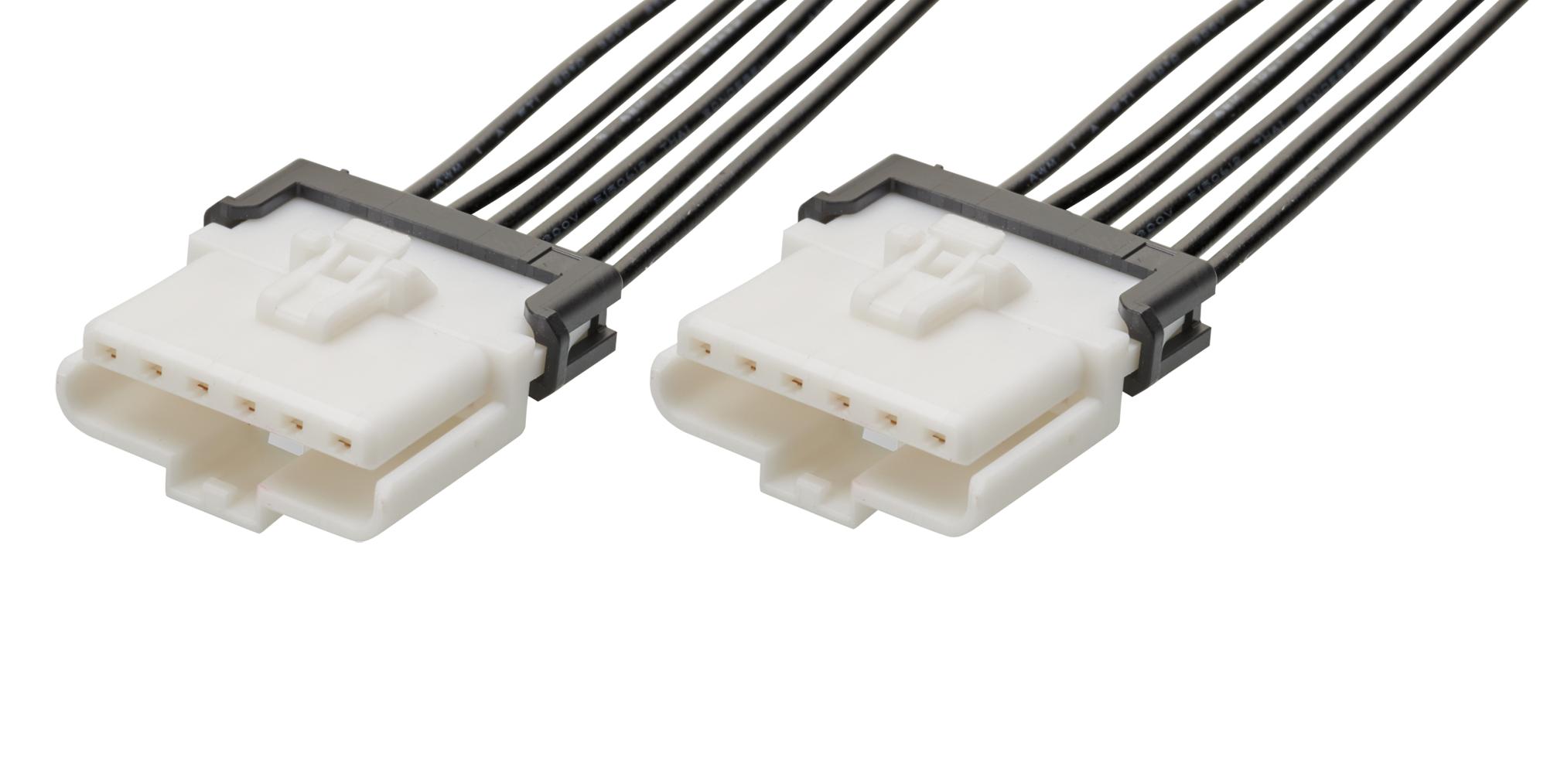

MOLEX 369220603 Power Connector Assembly
The Ditto Wire-to-Wire Interconnect assembly features a 3.00mm pitch with a single row of 6 circuits, ideal for compact power and signal connections. This robust black cable assembly is 300mm long, hermaphroditic in design, and suitable for crimp or compression termination styles. Made with tin-plated brass and nylon insulation, it handles up to 4.5A and 350V, ensuring reliable electrical performance. Compliant with RoHS standards, this assembly is designed for efficient connector-to-connector applications in various electronic systems.
MOLEX 369220603 Power Connector Assembly Specifications:
- Pitch - Mating Interface: 3.00mm
- Number of Circuits: 6
- Cable Length: 300.00mm
- Color - Resin: Black
- Gender: Hermaphroditic-Hermaphroditic
- Material - Metal: Tin Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 1.35-1.70mm
- Wire Size AWG: 18.372/g
- Maximum Current per Contact: 4.5A
- Maximum Voltage: 350V AC/DC
- Packaging Type: Bag
- Application: Power, Wire-to-Wire
- Assembly Configuration: Connector to Connector
- Status: Active
- RoHS Compliance: Yes, China RoHS, Halogen-Free
Buy the Molex Series Ditto Power: 0369220603
Enhance your electronic projects with the Molex Power Connector Assembly featuring a 3mm pitch, 6 circuits, and 300mm length. Ideal for power and signal applications, this reliable and RoHS-compliant cable assembly is designed for effortless connection between components. Constructed with durable tin-plated brass and nylon insulation, it offers excellent electrical performance up to 4.5A and 350V. Easy to install with crimp or compression methods, it guarantees long-lasting durability and maximum safety for your electronic systems.
Get Molex 0369220603 today—built for secure power and signal connections with RoHS compliance and robust construction.
Frequently Asked Questions
Where can I buy MOLEX 369220603?
You can click on the BUY or RFQ button to purchase 369220603 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369220603?
You can download the 369220603 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369220603?
MOLEX
