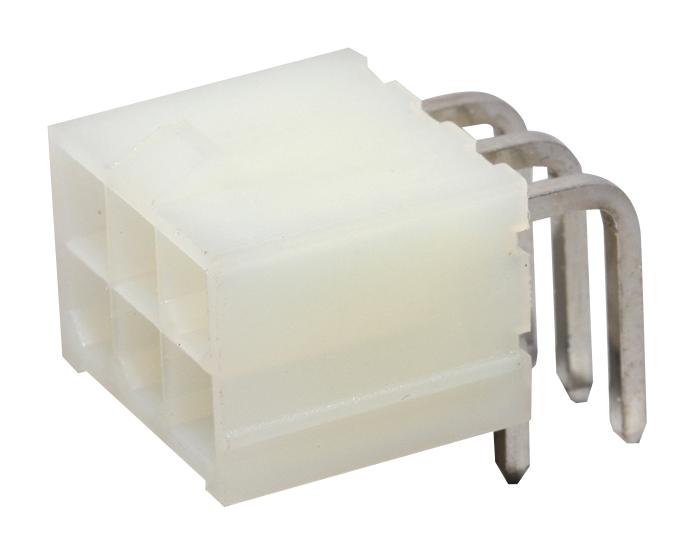

MOLEX 353180620 Mini-Fit Power Connector
This Mini-Fit Jr. Power Connector features a 4.20mm pitch, dual row, right-angle header with 6 circuits, made of durable PA Polyamide (Nylon) 6/6. It is compliant with RoHS, UL, and CSA standards, suitable for power applications with a maximum current of 13A per circuit and a maximum voltage of 250V. The connector has a temperature range from -40°C to +105°C, with a 30 mm PCB tail length, natural color, and tin plating on mating and termination interfaces. Designed for reliable PCB connections, it supports mating with specific Mini-Fit receptacles and maintains durability up to specified mating cycles.
MOLEX 353180620 Mini-Fit Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 6 (loaded) / 6 (maximum)
- Orientation: Right Angle
- Material - Resin: Nylon
- Color - Resin: Natural
- Material - Plating Mating: Tin, 5.080μm min
- Material - Plating Termination: Tin, 5.080μm min
- Temperature Range: -40°C to +105°C
- Current - Max per Contact: 13A
- Voltage - Max: 250V
- PC Tail Length: 30mm
- Package Type: Bag
- Flammability: 94V-2
- Durability (Mating Cycles Max): Not specified
- Guide to Mating Part: Mates with Mini-Fit Jr. Receptacle Housing
- Dimensional Features: 4.00mm pitch, PCB thickness 1.60mm
Buy the Molex Series Mini-Fit Junior Power Connectors: 353180620
Discover the reliable Mini-Fit Jr. Power Connector, designed for power applications with a 4.20mm pitch, dual row, and 6 circuits. Constructed from durable nylon with tin plating, it supports currents up to 13A and voltages up to 250V. Ideal for PCB mounting in a wide temperature range from -40°C to +105°C, it ensures excellent electrical and mechanical performance. Suitable for various electronic and power systems, this connector offers a robust, RoHS-compliant solution. Order online today for quick, secure delivery and enhance your device’s power connectivity.
Order your Molex Series Mini-Fit Jr. Power Connector 353180620 today and secure reliable power connections for your projects with proven durability and quality.
