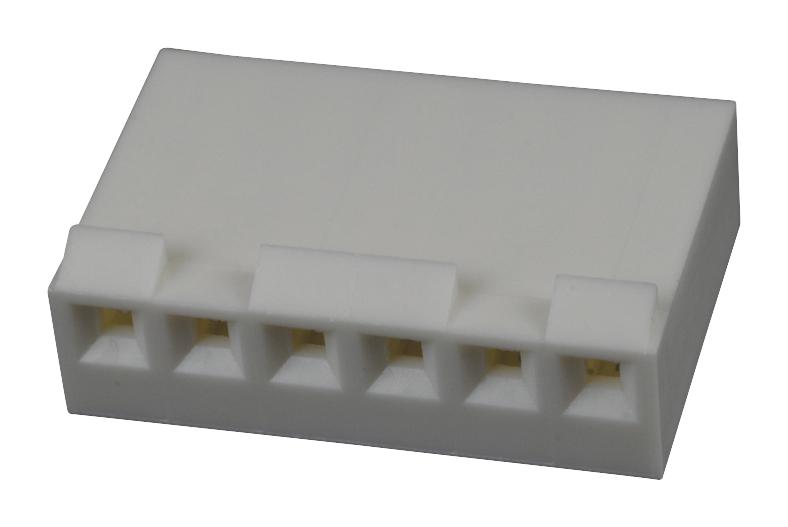

MOLEX 09508060 Connector
This high-quality connector is designed for reliable wire termination in electronic and electrical applications, featuring UL94V-0 flame retardant material, precise dimensions, and compatibility with a variety of headers and terminals. Manufactured from glass-filled polyester, it offers excellent durability, insulation, and thermal stability. The connector accommodates different wire gauges, ensuring versatile installation options. Its robust construction and compliance with industry standards make it ideal for high-density and high-performance electronic assemblies, providing secure connections and ease of use in complex wiring configurations.
MOLEX 09508060 Connector Specifications:
- Material: N-GLASS FILLED POLYESTER, UL94V-0
- Dimensions: A = 8.79 mm, B = 3.96+0.05 mm, 12.75 mm, 7.92+0.08 mm, and other size references
- Finish: See terminal drawings
- Compatible with headers PS-08-50, PS-40-02, PS-45570-001
- Housing accepts standard terminal numbers: 18-24 AWG with 2.79/.110 max. insulation diameter, 22-26 AWG with 1.65/.065 max. insulation diameter, and 18-20 AWG with 3.12/.123 max. insulation diameter
- Certifications: UL Listed, CSA Certified
- Rated for high-density connections, matching with round or square pins
- Conforms to class B cosmetic requirements, with provision for voids if needed
- Designed for 2-14 circuit applications, with detailed geometry on dedicated sheets
- Operating temperature range specified, with flame retardant housing
Buy the Buy Molex Connector Part Number 09508060 Online
Enhance your electronic assemblies by purchasing the Molex connector online today. Designed from UL94V-0 glass-filled polyester for superior durability, this connector ensures secure and reliable wire termination across various gauges. Compatible with multiple header types and circuit configurations, it provides high-density connection options for complex electronic systems. Easy to install and conforming to industry standards, it is the ideal choice for professional wiring, industrial automation, and high-performance electronic applications. Order now for fast delivery and reliable performance.
Buy Molex 09508060 connector now and experience unmatched reliability and performance in your electronic wiring projects.
Frequently Asked Questions
Where can I buy MOLEX 09508060?
You can click on the BUY or RFQ button to purchase 09508060 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 09508060?
You can download the 09508060 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 09508060?
MOLEX
