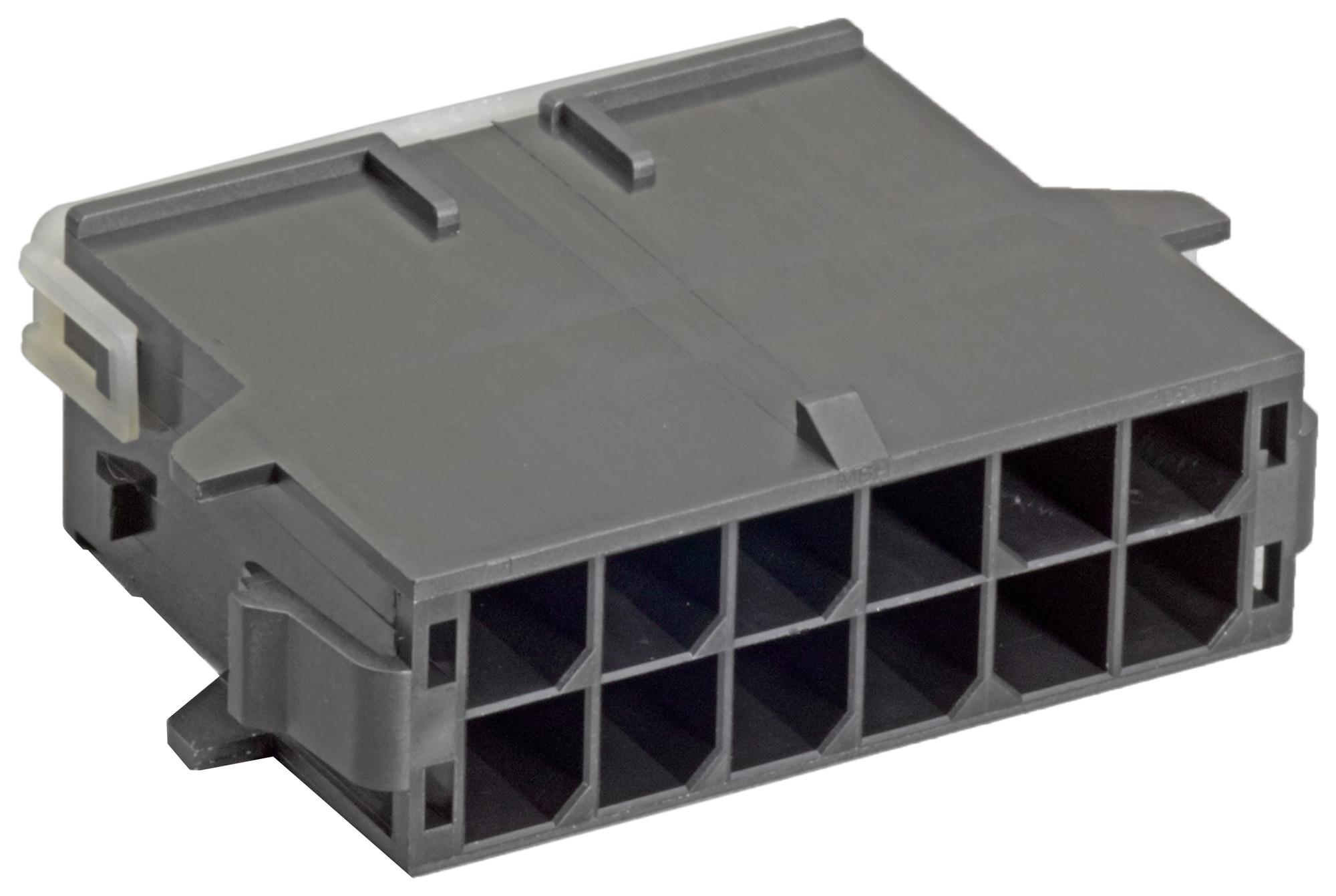

MOLEX 1054110110 Power Connector
Mega-Fit Power Connectors are high-current, space-efficient electrical connectors designed for applications requiring robust power delivery up to 25A per circuit. Featuring a 5.70mm pitch, these connectors include fully protected header pins and receptacle terminals with unique keying options for secure mating and design flexibility. They support hot-plugging at 48V/25A up to 30 cycles, offering a reliable power connection with terminals that are tin-plated for durability. Suitable for various industrial, telecommunication, and consumer appliance applications, these connectors enhance system safety and performance through high-quality materials and innovative locking mechanisms.
MOLEX 1054110110 Power Connector Specifications:
- Voltage: 600V
- Current: 25.0A
- Contact Resistance: 6 millichms
- Insulation Resistance (min.): 1,000 Megohms
- Dielectric Withstanding Voltage: No Breakdown
- Mechanical Insertion Force: Max 6.8N
- Unmating Force: Max 6.5N (gold), 6.8N (tin)
- Header Pin Retention Force: Min 89N per pin
- Housing Material: UL 94 V-0, glow wire compliant
- Contact Material: High-Conductivity Copper
- Plating Options: Gold 0.38 or 0.76 (15 or 30) μm, Tin
- Wire Range: Compatible with various terminal series
- PCB Thickness: 1.60mm and 2.40mm
- Operating Temperature: -40°C to +150°C
Buy the Molex Series Mega-Fit Power Connectors: 5.70mm Pitch Part 1054110110
Purchase Molex Mega-Fit Power Connectors designed for demanding industrial, telecommunication, and consumer applications. These high-current connectors deliver reliable performance with a 25A per circuit rating, featuring secure locking mechanisms, keying features, and durable tin or gold plating. Suitable for PCB mounting with a 5.70mm pitch, they support hot-plugging at 48V/25A and are engineered to withstand temperatures from -40°C to +150°C. Order online today for dependable, high-performance power connections that simplify assembly and enhance system durability.
Get Molex Mega-Fit Power Connectors today—built for high-current, reliable power delivery with secure locking and flexible keying options.
Frequently Asked Questions
Where can I buy MOLEX 1054110110?
You can click on the BUY or RFQ button to purchase 1054110110 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054110110?
You can download the 1054110110 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054110110?
MOLEX
