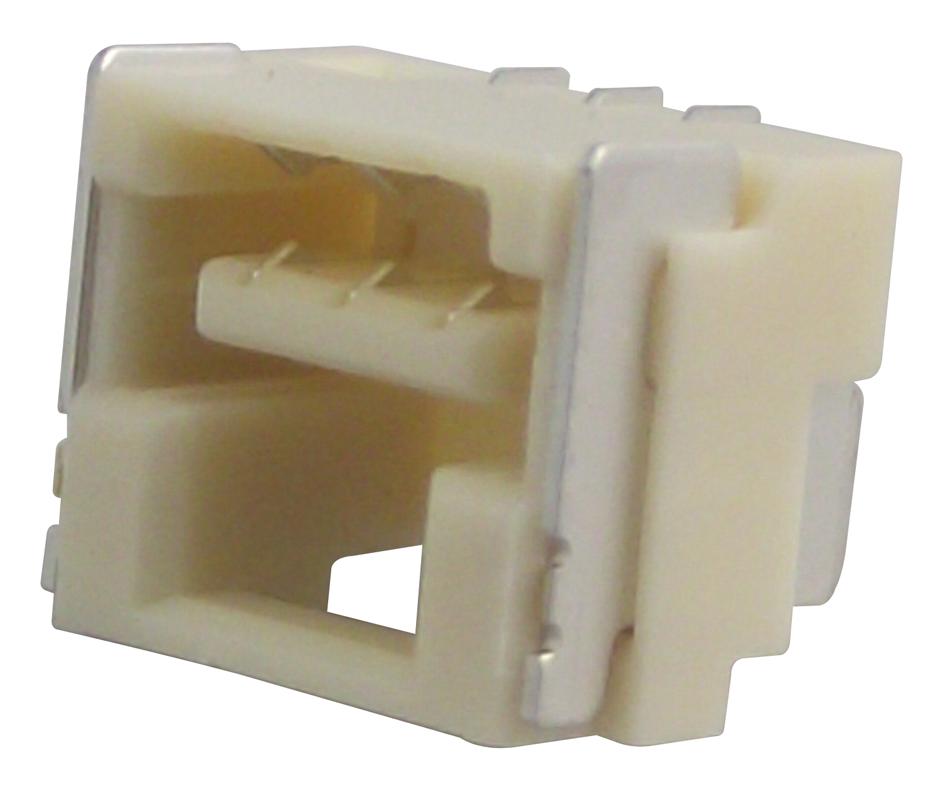

MOLEX 5023860370 PCB Receptacle
This high-quality PCB receptacle features a 3-circuit EMBS twin pack with an embossed Tape on Reel packaging, designed for reliable wire-to-board connections. It is rated for 1.25 W power, operates within a temperature range of -40°C to +105°C, and supports up to 1A current and 50V AC/DC voltage. Crafted from durable high-temperature thermoplastic with copper alloy contacts, it offers robust mating cycles, polarization, and stackability, ensuring long-lasting performance in electronic assemblies and industrial applications. Its surface-mount design makes it suitable for compact circuitry and automated assembly processes.
MOLEX 5023860370 PCB Receptacle Specifications:
- Circuits (Loaded): 3
- Color - Resin: Natural
- Durability (mating cycles max): 30
- Glow-Wire Capable: No
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Mated Height: 5.55mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 210.801/mg
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: No
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 1.25mm
- Pitch - Termination Interface: 1.25mm
- Plating min - Mating: 1.016um
- Plating min - Termination: 1.016um
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
Buy the Buy Molex PCB Receptacle Part Number 5023860370 Online
Order the Molex PCB Receptacle with Part Number 5023860370 online today for a dependable wire-to-board connection solution. This 3-circuit connector is rated for 1.25 W power, supports up to 1A current and 50V voltage, and operates in a temperature range from -40°C to +105°C. Made with durable thermoplastic and copper alloy contacts, it ensures long-term performance with up to 30 mating cycles. Its right-angle, surface-mount design is perfect for compact, automated electronic assemblies used across various industries.
Get Molex 5023860370 today—designed for reliable, high-density connections with long-lasting durability in industrial and electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 5023860370?
You can click on the BUY or RFQ button to purchase 5023860370 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023860370?
You can download the 5023860370 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023860370?
MOLEX
