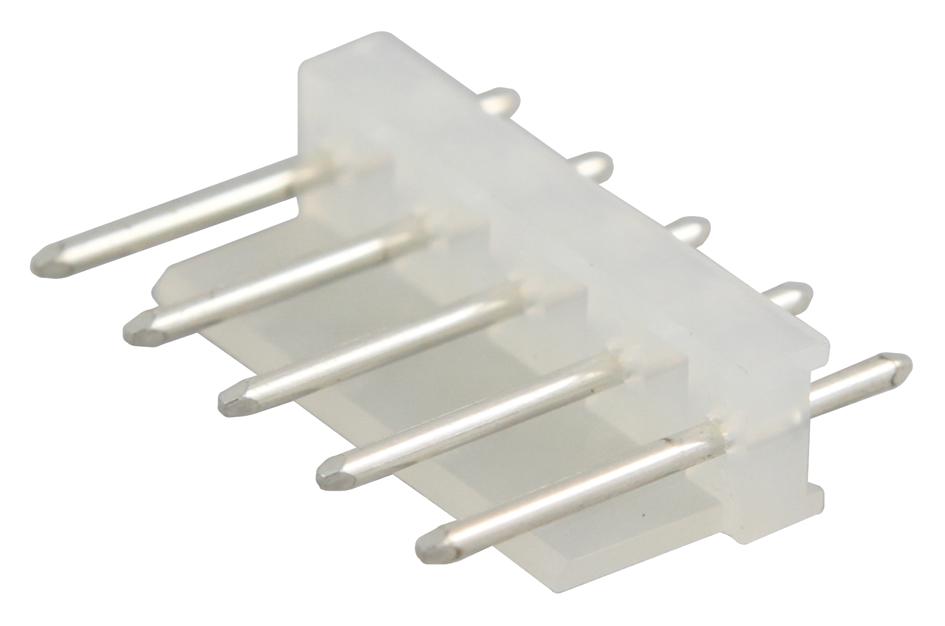

MOLEX 10085051 Power Connector
The KK 508 Connector System features a vertical KK header with polarizing backwall, five circuits, and tin plating, designed for reliable power and wire-to-board connections. Its robust brass contact material ensures durability with up to 25 mating cycles, and the nylon housing provides resistance to environmental factors. With a maximum operating voltage of 250V and current rating of 7.0A per contact, this connector offers excellent electrical performance suitable for power applications. It supports through-hole mounting, with a pitch of 5.08mm, and is certified RoHS compliant for environmentally conscious use.
MOLEX 10085051 Power Connector Specifications:
- Number of Circuits: 5
- Color - Resin: Natural
- Flammability: UL 94V-2
- Durability (mating cycles max): 25
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 1.334 grams
- Orientation: Vertical
- PCB Thickness - Recommended: 1.60mm
- Maximum Current per Contact: 7.0A
- Voltage - Maximum: 250V
- Temperature Range - Operating: Not specified
- Pitch - Mating Interface: 5.08mm
- Terminations: Through Hole
- Certifications: UL, RoHS Compliant
Buy the Molex Series KK 508 Power Connector: 10085051
Purchase the Molex KK 508 Power Connector online today for dependable power delivery in electronic assemblies. Its 5 circuits, vertical orientation, and tin plating ensure longevity and consistent performance. Suitable for power applications with a maximum voltage of 250V and 7.0A per contact rating, this connector is RoHS compliant and features a 5.08mm pitch for easy integration. Designed with durable materials like brass and nylon, it supports up to 25 mating cycles, providing reliability for demanding industrial and electronic projects.
Get Molex KK 508 Power Connector today—built for reliable power and durable wire-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 10085051?
You can click on the BUY or RFQ button to purchase 10085051 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 10085051?
You can download the 10085051 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 10085051?
MOLEX
