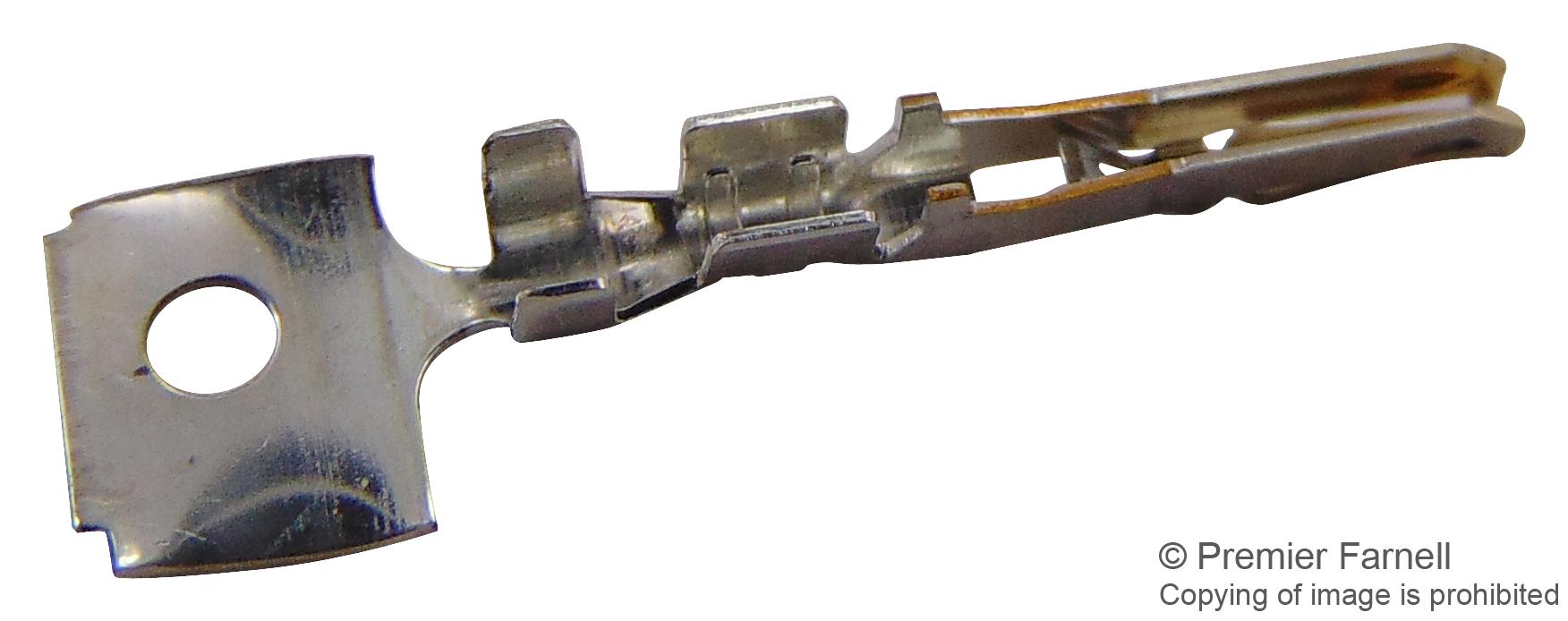

MOLEX 1053001200 Nano-Fit Power Crimp Terminal
The MOLEX 105300-1200 Nano-Fit Power Crimp Terminal is a crucial component in Nano-Fit Power Connector systems, commonly used in automotive, industrial, and consumer electronics applications. Its compact design and high-conductivity copper construction with gold and tin-nickel plating ensure robust and reliable power transmission. The terminal supports wire sizes ranging from 0.13mm² to 0.20mm² (24-26 AWG) and is compatible with specific application tooling for precise and efficient crimping. It is RoHS compliant and designed for secure and dependable connections.
MOLEX 1053001200 Nano-Fit Power Crimp Terminal Specifications:
- material_metal: High Conductivity Copper
- plating_min_mating: 0.381µm
- plating_min_termination: 2.540µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.30mm
- wire_size_awg: 24, 26
- wire_size_mm2: 0.13-0.20
- current_maximum_per_contact: 6.5A
- voltage_maximum: 300V
- durability_mating_cycles_max: 50
- gender: Female
- material_plating: Gold over Nickel, Tin over Nickel
- packaging_type: Reel
- net_weight: 0.100/g
Buy the 105300-1200 MOLEX Nano-Fit Power Crimp Terminal | myMectronic
Purchase the MOLEX 105300-1200 Nano-Fit Power Crimp Terminal securely and reliably through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1053001200?
You can click on the BUY or RFQ button to purchase 1053001200 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1053001200?
You can download the 1053001200 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1053001200?
MOLEX
