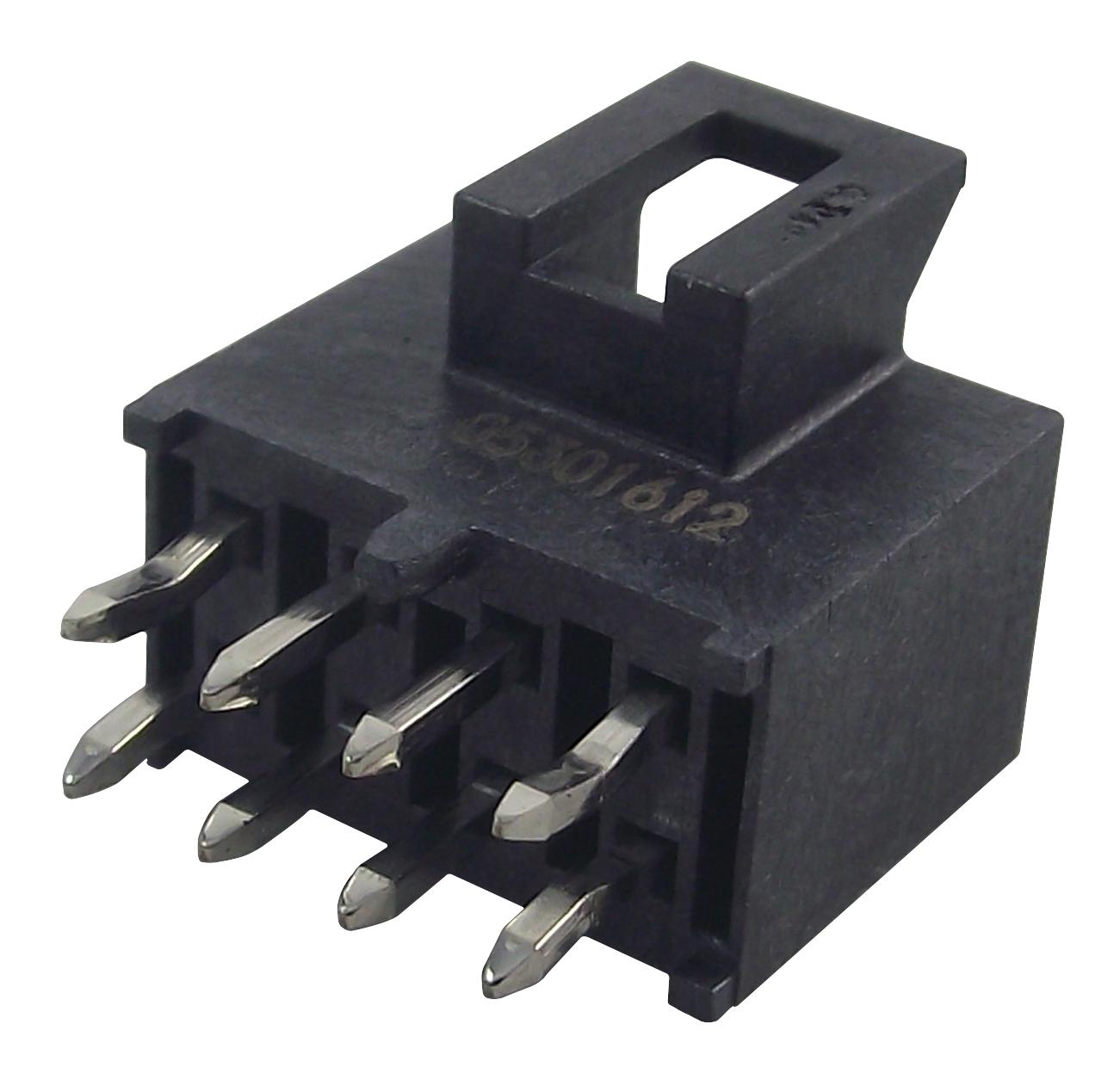

MOLEX 1053101208 Nano-Fit Power Connector
The MOLEX 105310-1208 Nano-Fit Power Connector is a robust and compact vertical header ideal for power applications in wire-to-board connections. Its 2.50mm pitch and dual-row design accommodate multiple circuits, while the kinked pins simplify the assembly process. Constructed with brass and featuring gold-over-nickel plating for mating and tin-over-nickel for termination, this connector ensures reliable electrical contact. It is designed for through-hole termination and is polarized to both the mating part and the PCB, enhancing assembly accuracy and preventing mismating. The connector's robust design and reliable performance make it suitable for a wide range of industrial and consumer electronics applications.
MOLEX 1053101208 Nano-Fit Power Connector Specifications:
- Series: 105310
- Application: Power, Wire-to-Board
- Circuits_Loaded: 8
- Circuits_Maximum: 8
- Color_Resin: Black
- Durability_Mating_Cycles: 50
- Flammability: 94V-0
- Guide_to_Mating_Part: Yes
- Lock_to_Mating_Part: Yes
- Material_Metal: Brass
- Material_Plating_Mating: Gold over Nickel (0.381µm)
- Material_Plating_Termination: Tin over Nickel (1.524µm)
- Material_Resin: Liquid Crystal Polymer
- Net_Weight_g: 0.750
- Number_of_Rows: 2
- Orientation: Vertical
- PC_Tail_Length_mm: 3.20
- PCB_Locator: Yes
- PCB_Retention: Yes
- PCB_Thickness_Recommended_mm: 1.60, 2.40
- Packaging_Type: Tray
- Pitch_Mating_Interface_mm: 2.50
- Pitch_Termination_Interface_mm: 2.50
- Plating_min_Mating_µm: 0.381
- Plating_min_Termination_µm: 1.524
- Polarized_to_Mating_Part: Yes
- Polarized_to_PCB: Yes
- Shrouded: Yes
- Stackable: No
- Surface_Mount_Compatible: No
- Temperature_Range_Operating_C: -40°C to +115°C
- Current_Maximum_per_Contact_A: 6.5
- Voltage_Maximum_V: 300
- Mates_With: Nano-Fit Receptacle Housing 105308
