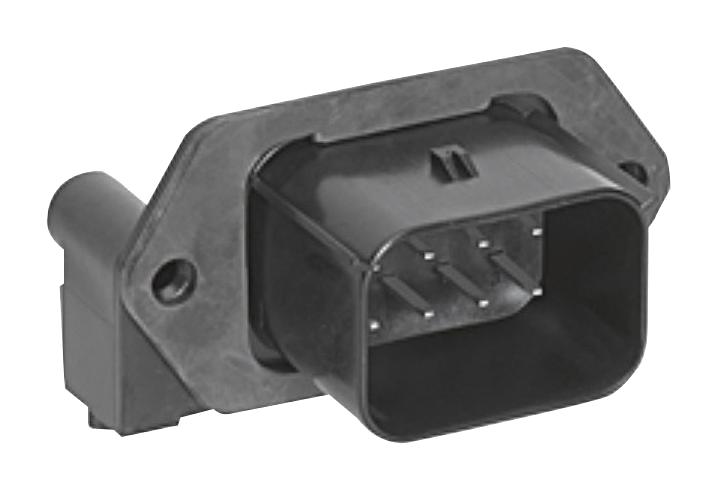

MOLEX 194270049 MX150L PCB Header
The MOLEX 19427-0049 is a robust right-angle PCB header within the MX150L Industrial Sealed Connector System. Designed for power and wire-to-board applications, it offers a 5.84mm pitch and accommodates 16 circuits. The header is IP67 rated, providing excellent protection against dust and water ingress, making it suitable for harsh industrial environments. It is not suitable for automotive applications requiring USCAR or similar specifications. The header features tin plating for both mating and termination surfaces, ensuring reliable electrical connections. Its right-angle orientation simplifies PCB layout and integration.
MOLEX 194270049 MX150L PCB Header Specifications:
- Product Family: PCB Headers
- Series: 19427
- Application: Power, Wire-to-Board
- Pitch - Mating Interface: 5.84mm
- Circuits (Loaded): 16
- Circuits (maximum): 16
- Durability (mating cycles max): 25
- Flammability: 94V-0
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 51.812/g
- Number of Rows: 2
- Orientation: Right Angle
- PC Tail Length: 3.30mm
- PCB Locator: Yes
- PCB Retention: None
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tray
- Polarized to Mating Part: Yes
- Polarized to PCB: No
- Shrouded: Fully Stackable
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: -40° to +125°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 18.0A
- Voltage - Maximum: 600V
